BSD Raider

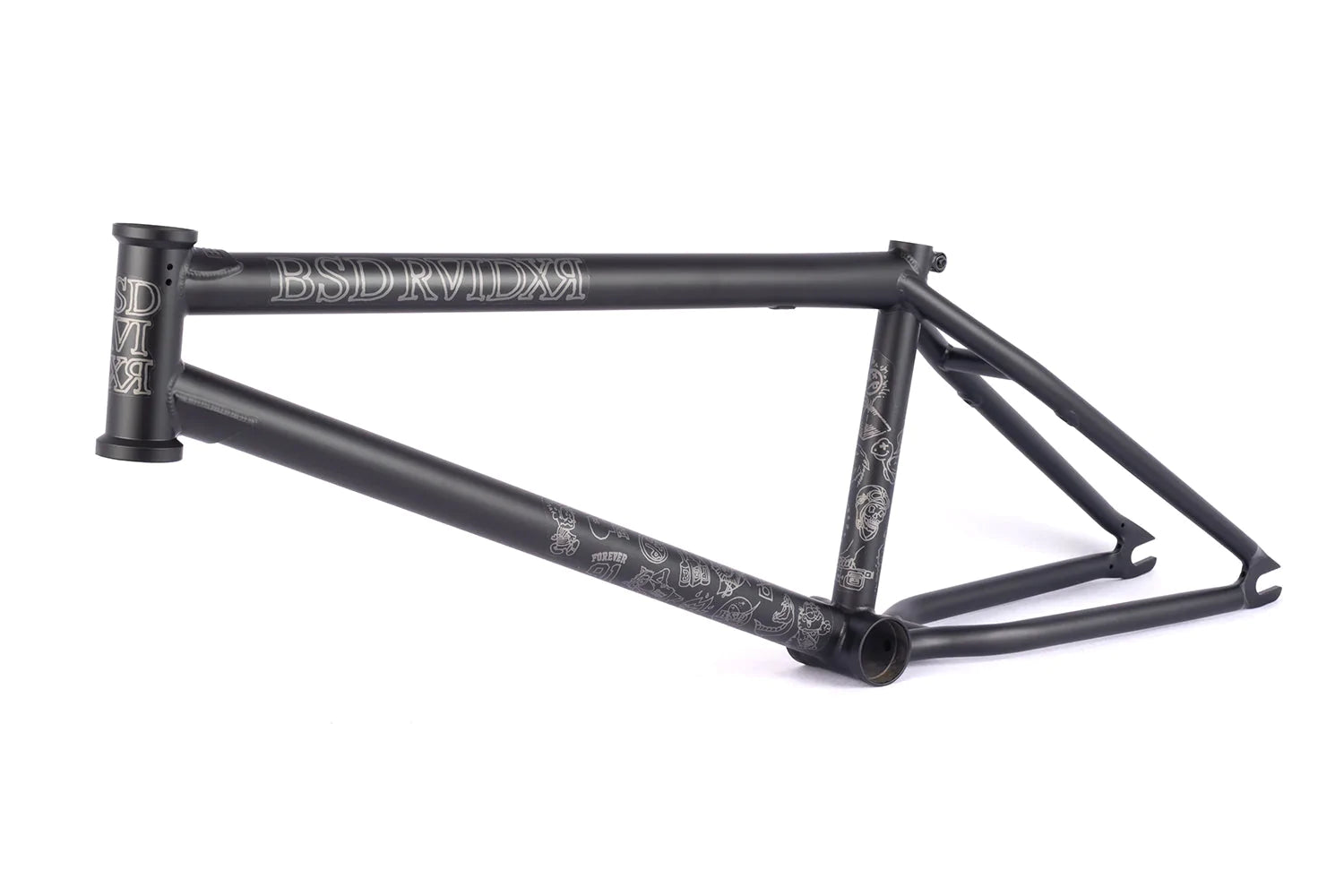

BSD Raider "David Grant" V3 Frame

Regular price $465.00 $379.00 Sale

This BSD "Raider V3" 2017 BMX Frame is optionally available with 21" long top tube. A long top tube coupled with a slightly longer 13.5 "- 14" inches rear end and a frame height of 9.5" offers especially taller riders an ideal allround BMX frame with modern geometry and specs. Of course this BSD "Raider V3" 2017 BMX Frame is made from best quality, partially heat treated 100% 4130 CrMo and a steep 75.2° degrees head tube make this high quality allround BMX frame very maneuverable in spite of its length. Furthermore this frame includes high quality made investment cast dropouts, a integrated seat clamp and removable brake hardware.

  • Material: 100% 4130 CrMo, top tube and down tube gussets, butted tubes, tapered chainstays, integrated headset, integrated seatclamp, removable brake hardware, Mid BB
  • Geometry:
    Top Tube (TT): 21"
    Chain Stay (CS): 13.5" - 14"
    Head Tube Angle (HA): 75.2°
    Seat Tube Angle (SA): 71°
    BB Height: 11.75"
    Standover Height (SO): 9.5"
  • Bottom Bracket: Mid BB
  • Dropouts: Investment cast, 7mm thick, 14mm slots
