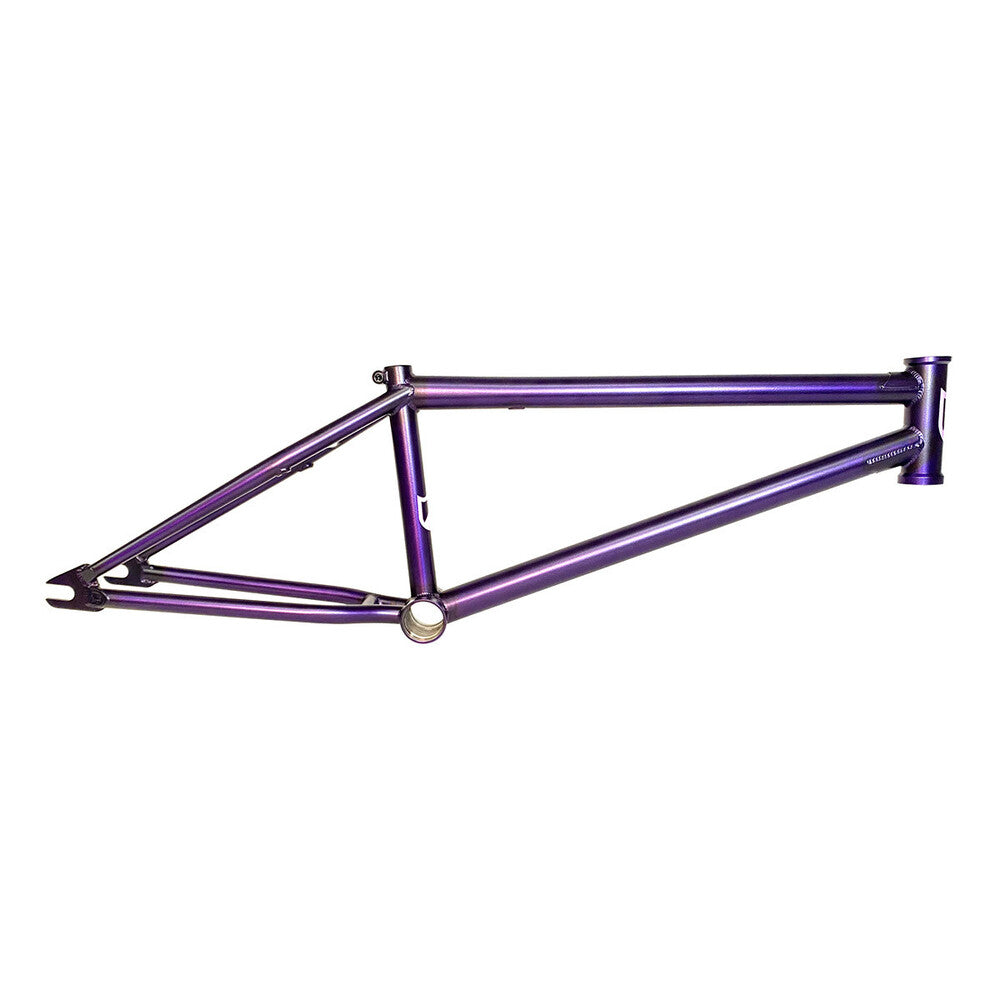

S&M ATF XL FRAME 21.25 PURPLE HAZE
S&M ATF XL FRAME 21.25 PURPLE HAZE
Regular price
$647.00 USD
Regular price
Sale price
$647.00 USD
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is the base model most of our pro signature frames have started from for awhile now. It’s also the basic custom frame most of the employees here ride. It’s a little stronger and heavier than some of the frames on the market but it’s what people that really ride want. Stylish, classic, and burly all rolled up into one.
| TOP TUBE LENGTHS | 20″, 20.5″, 20.75″, 21″, 21.25″,21.5″,22″ |
| REAR END LENGTH | 13.4″-13.875″ |
| HEAD TUBE ANGLE | 75° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Integrated |
| SEAT POST SIZE | 1″ (25.4mm) |
| BB HEIGHT | 11.7″ |
| BB STYLE | Mid w/EZ-out punch slots |
| STANDOVER HEIGHT | 8.5″ |
| BRAKE MOUNTS | Thread-On 990 (Mounts sold separately) |
| DROPOUTS | 14mm Slot, 4Q-Baked |
| GYRO TABS | None |
| WEIGHT | 4.65 lb (2.12 kg) |
| TUBESET | Butted True Temper SuperTherm Tubing |
