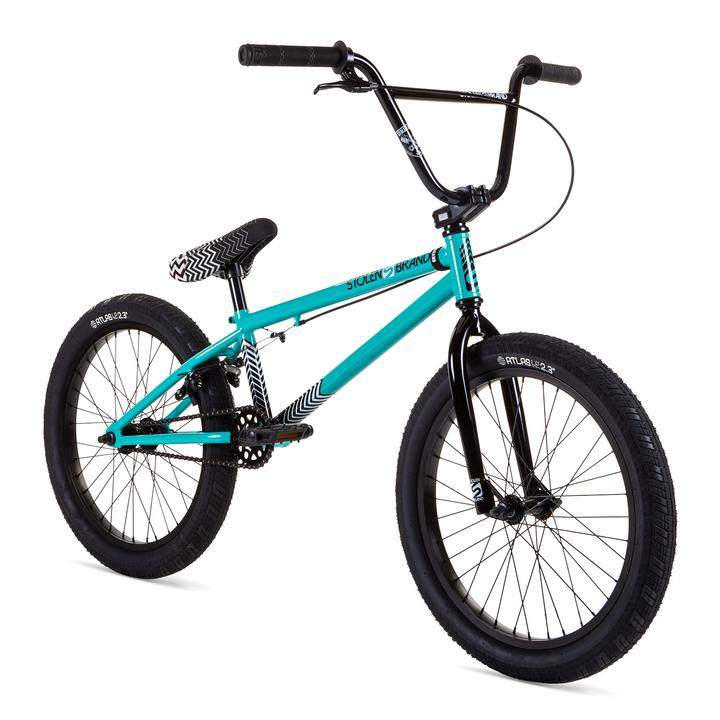

STOLEN COMPACT (19.75" TT)

Formerly called the Casino XS, the Compact is meant for smaller riders who want the upgradeability of a 20″ but the riding size of an 18″ bike. Designed to ride like a Pro bike on an Am budget. We make this bike in Taiwan to keep the quality high. For This Year we upgraded to the after-market Fiction Atlas tires.

DETAILED SPECIFICATIONS

Frame: Hand Welded Hi-Ten Steel, 19.75" TT
Fork: Tapered legs w/ One-Piece Steerer w/ Compressor Topcap
Bars: Tallboy bars, HiTen Steel, 8.75"
Grips: Stolen Loot Flanged, 160mm
Barends: Stolen Vortex Rubber
Stem: Fiction Spartan XS, 40mm
Headset: Standard 1 1/8″ Threadless
Brake Lever: APSE Alloy w/ Hinged Clamp
Brakes: APSE U25 Alloy U-brake
Cranks: Fiction Zeus Tubular 4130 Chromoly Arms, 8 Spline
Chromoly Spindle, 165mm
Sprocket: Stolen 25T
Bottom Bracket: Sealed MID 19mm
Pedals: Wellgo PC w/ Boron Spindles
Chain: Z-410, Black
Front Hub: Unsealed 3/8″ Axle
Rear Hub: Rampage 6061 Alloy Cassette w/ 14mm Chromoly Axle
Driver: 9t Sealed, One-Piece Chromoly
Front Rim: Fiction Trojan Alloy (Single-wall)
Rear Rim: Fiction Trojan Alloy (Single-wall)

Seat: Fiction Moto Combo Seat
Seat Post: Alloy 200mm included w/ Seat
Seat Clamp: Integrated
Front Tire: Fiction Atlas 2.30″
Rear Tire: Fiction Atlas 2.30″

Weight: Approx 25.75lbs
Colors: Caribbean Green

GEOMETRY

Toptube Length: 19.25"

Chainstay Length: 13.75"
Headtube Angle: 74.5°
Seattube Angle: 71°
Standover Height: 8.0″
Bottom Bracket Height: 11.75"
Fork Offset: 32mm
