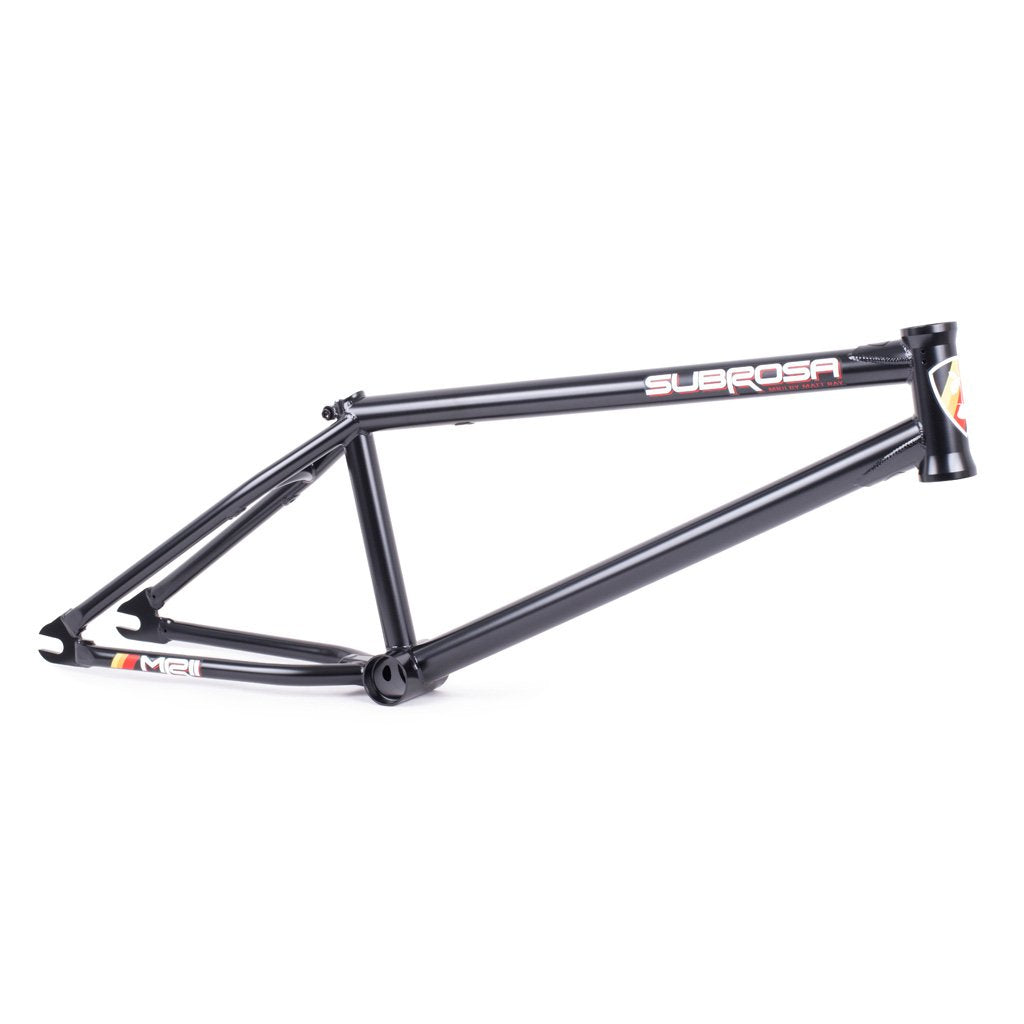

SUBROSA MR2 FRAME 21"

Matt has been basically riding non-stop since we sat him down on his very own signature frame dubbed the MR1. Although Matt’s big burly riding style hasn’t changed, he wanted to fine-tune a few things on his frame and change the theme to freshen it up a bit. We added to the standover height and changed it from 8.75″ to 9″ to make the bike a little more stable. The B.B. was also raised just a little bit, for a little extra pop. We also increased the length of the dropout slot to make the frame compatible with more gear ratios, and it also makes it easier to remove the rear wheel during repairs.

• Matt Ray Signature Frame
• Sizes: 20.5″, 20.75″, 21″, 21.2″
• 4130 chromoly, double butted top tube and down tube
• Head tube: 75° / 120mm
• Seat tube: 71° / 9.0″ / integrated seat clamp
• Chainstay Length: 13.3″ – 14.0″
• BB: 11.5″/ 38mm – Mid
• Weight: 5.15 lbs (20.5″)
• Colors: Satin Translucent Orange,  Black
