BSD FOCUS FRAME
BSD FOCUS FRAME
Regular price
$659.99 CAD
Regular price
Sale price
$659.99 CAD
Unit price
/
per

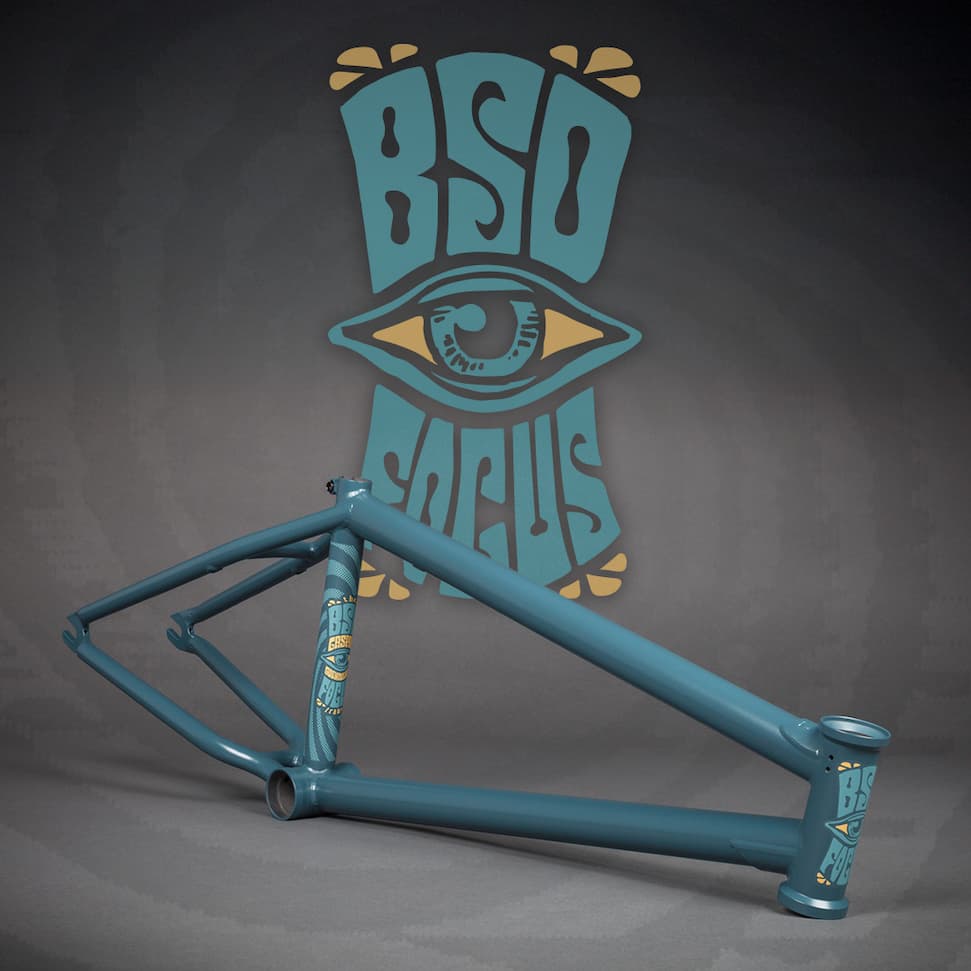

Introducing Gaspar Guendulain’s new signature frame. The Focus frame's geometry marks a significant departure from the typical trend of short street frames. With a 13.5 - 14” rear end, 10” standover, an angled forward 72 degree seattube angle to aid with pinching the seat on barspins and is available in toptube sizes up to 21.5” which is the length Gaspar rides...
Toptube lengths | 20.8" / 21" / 21.2" / 21.5" |
Headtube angle | 75.2° |
Headtube length | 123mm |
Seattube angle | 72° |
Rear end length | 13.5″ – 14″ |
BB Height | 11.7” |
Standover height | 10” |
Weight | 5lbs |
Brake mounts | removable - brake kit available separately |
Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
Dropouts | Heat treated 4130 CrMo / Invest cast |
Seatclamp | Integrated |

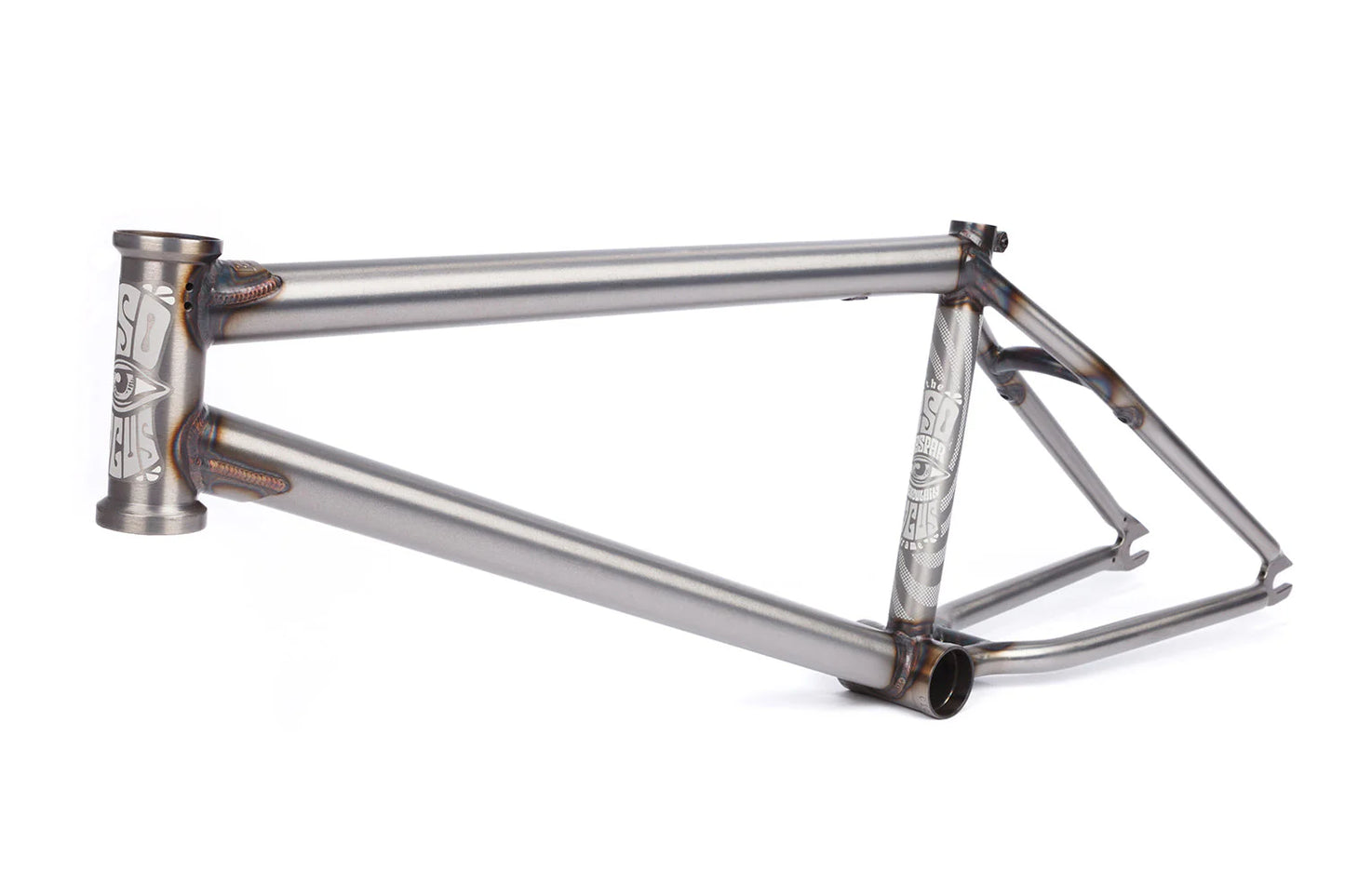

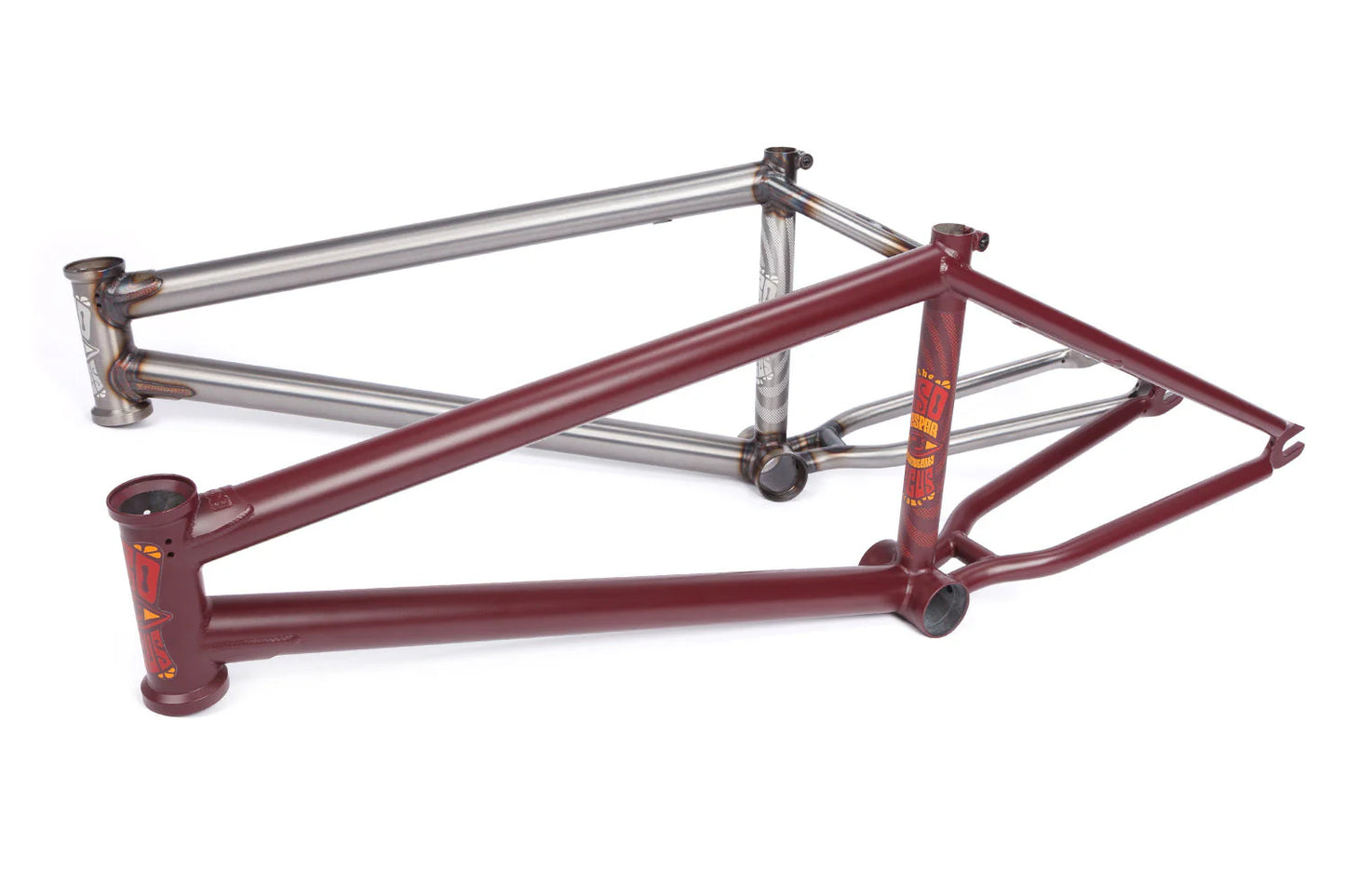

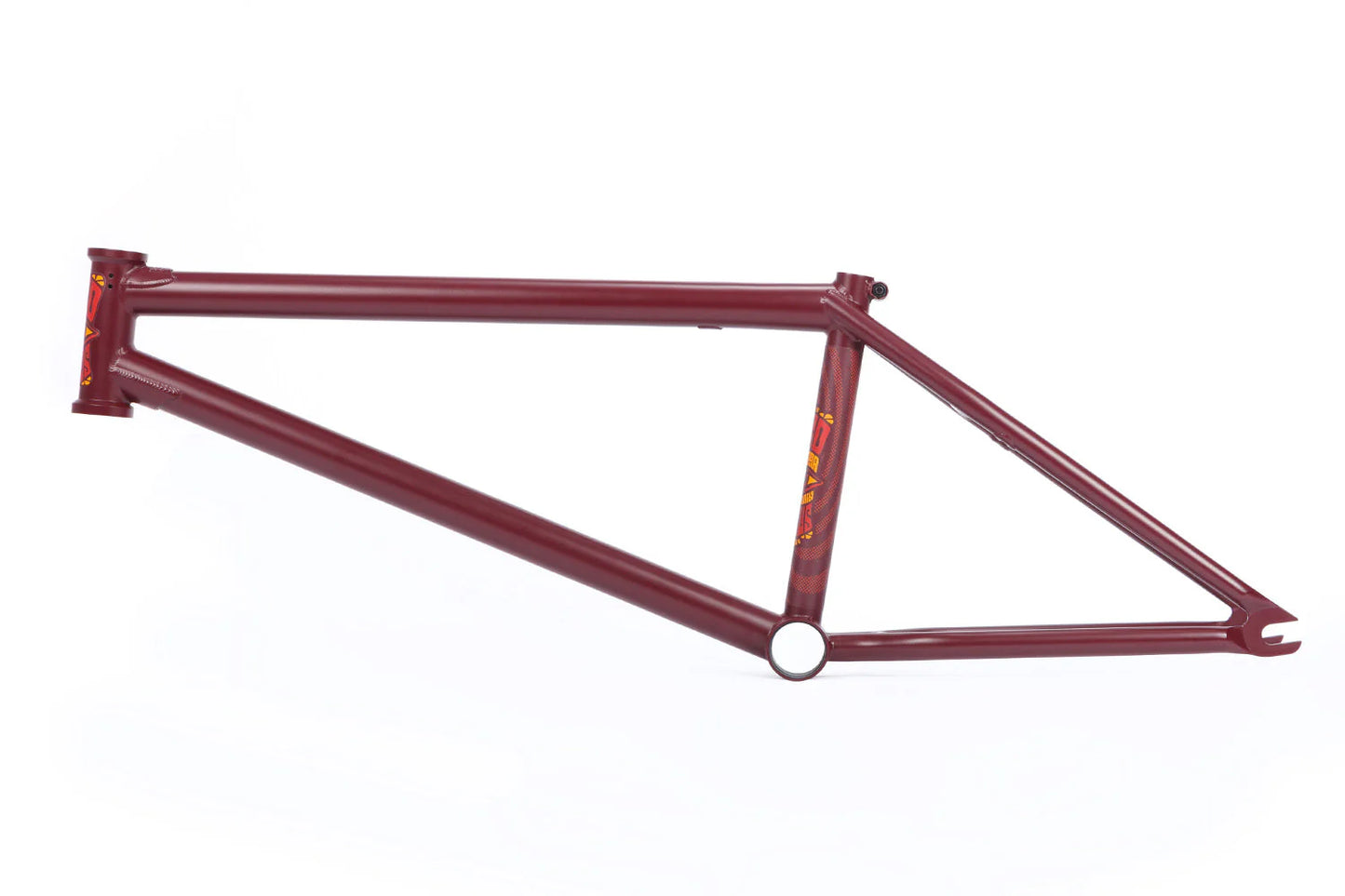

Colours | WINE RED / FLAT RAW |
