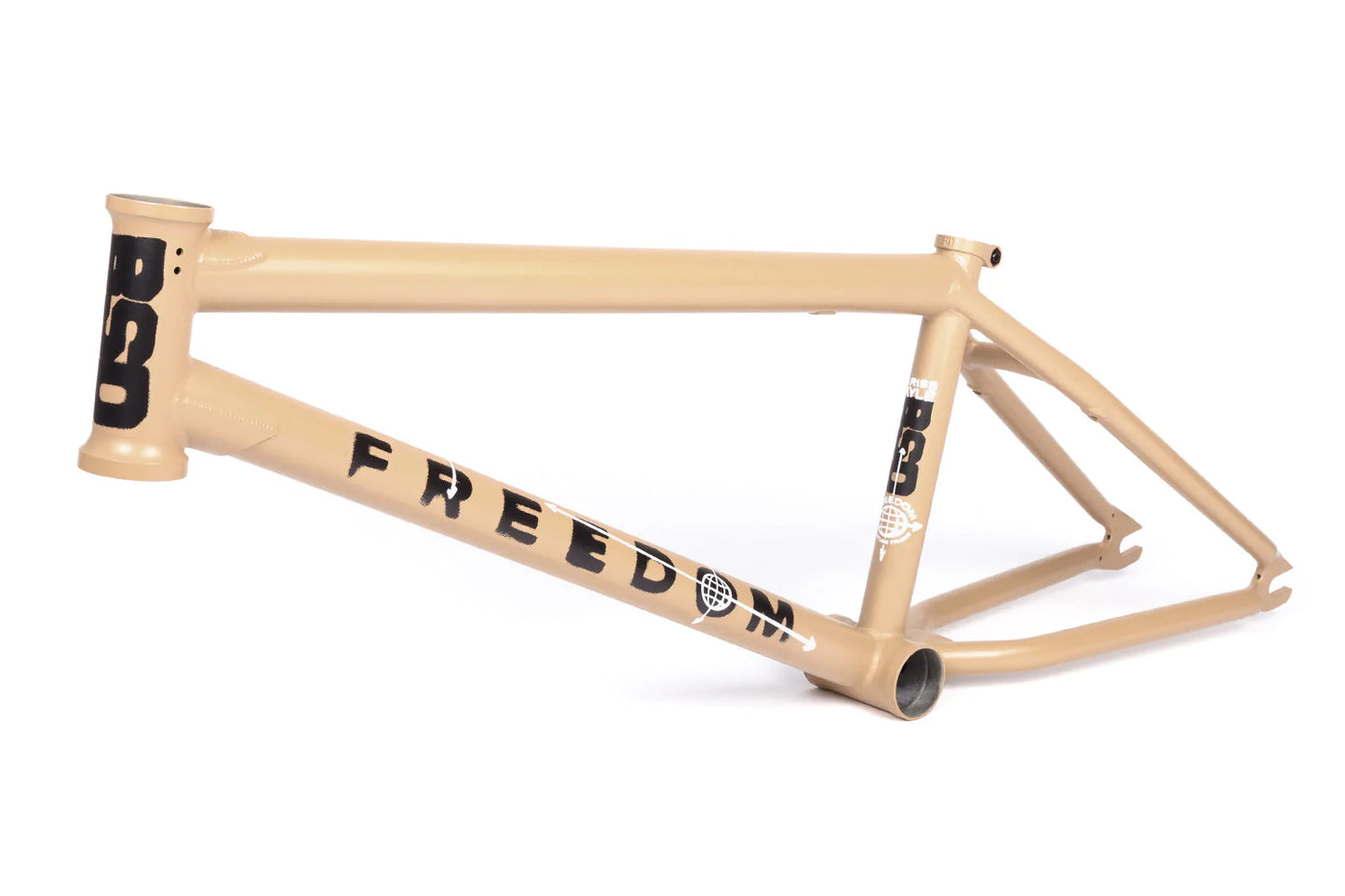

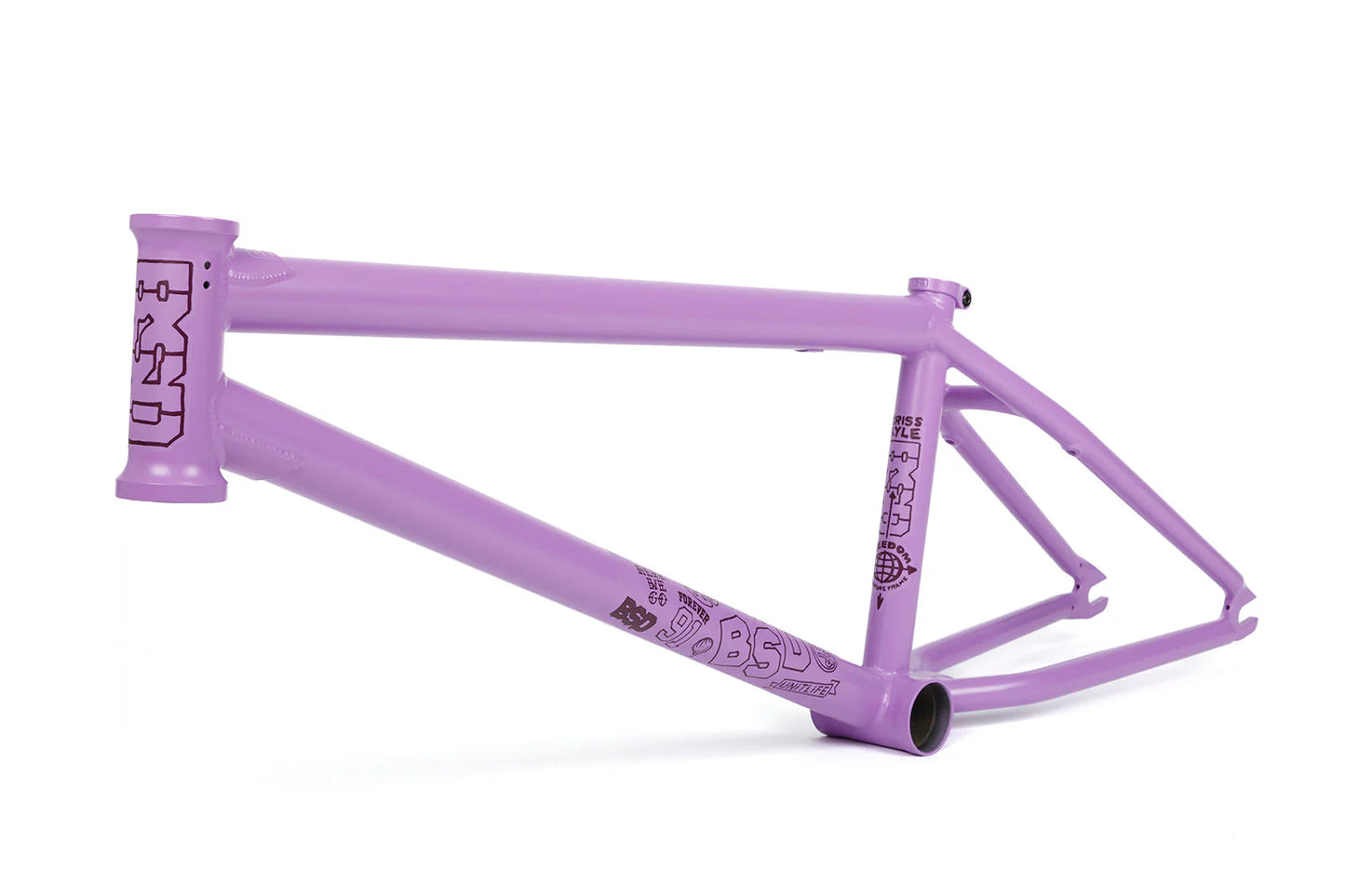

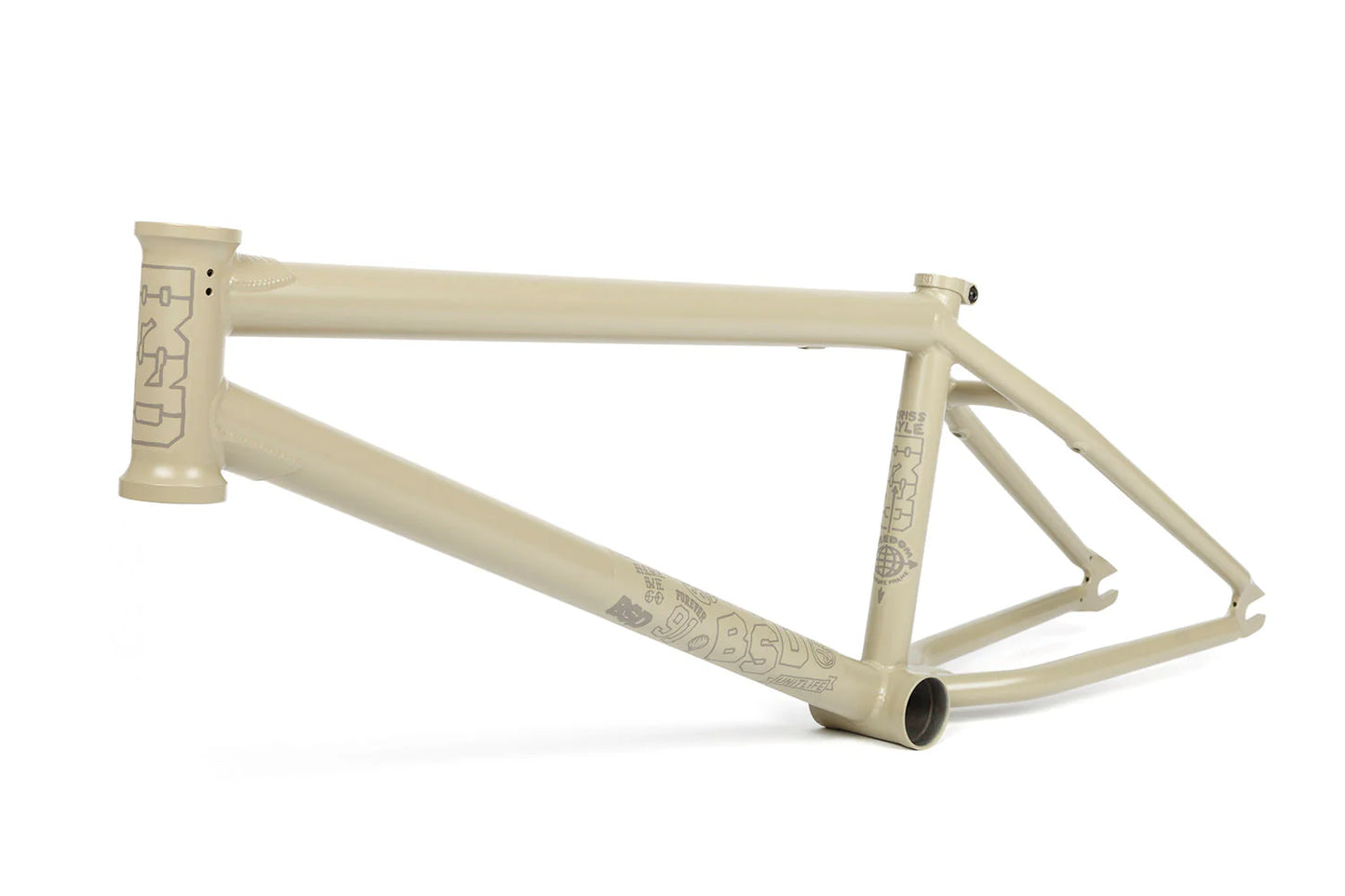

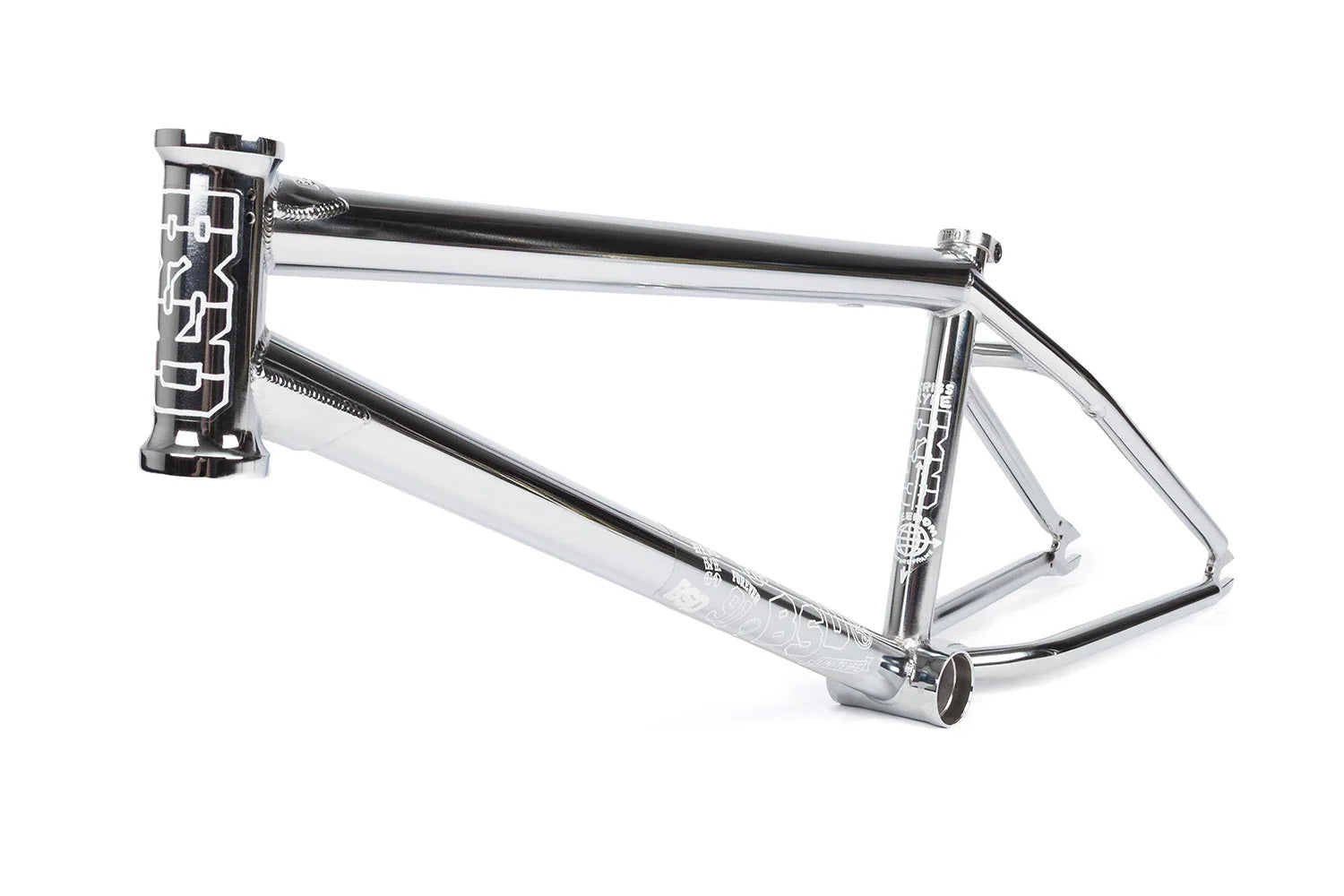

BSD FREEDOM FRAME

BSD FREEDOM FRAME

Regular price $579.99 CAD
Regular price Sale price $579.99 CAD
Sale Sold out
Shipping calculated at checkout.
Size

Kriss Kyle is the type of rider who likes to ride everything, bowls, street, dirt, the lot. His signature Freedom frame is designed to perform well on all terrain, this frame combines the stability of a low 11.5" BB, the responsiveness of a 75° headangle and the versatility of a short rear end. To create a stiffer rear triangle we've utilized an invest cast wishbone and invest cast seatstay bridge, great for sideways landings!!

Toptube lengths 20.2 / 20.5 / 20.8 / 21.1 / 21.5
Headtube angle 75°
Headtube length 117mm
Seattube angle 69.5°
Rear end length 13.2″ – 13.625″ - note the 21.5″ frame has a longer rear (13.4″ – 13.825″)
BB Height 11.5"
Standover height 9"
Weight 5lbs
Brake mounts removable - brake kit available separately
Tubing Sanko Japanese seamless 4130 CrMo / triple butted
Headtube Heat treated 4130 CrMo / CNC / Offset thickness
Bottom Bracket Heat treated 4130 CrMo / CNC machined
Chainstay Wishbone Heat treated 4130 CrMo / Invest cast
Dropouts Heat treated 4130 CrMo / Invest cast
Seatclamp Heat treated 4130 CrMo / Invest cast
Colours KAWASAKI GREEN / FLAT RAW / SANDSTORM / FLAT BLACK / MILITARY GREEN
