BSD

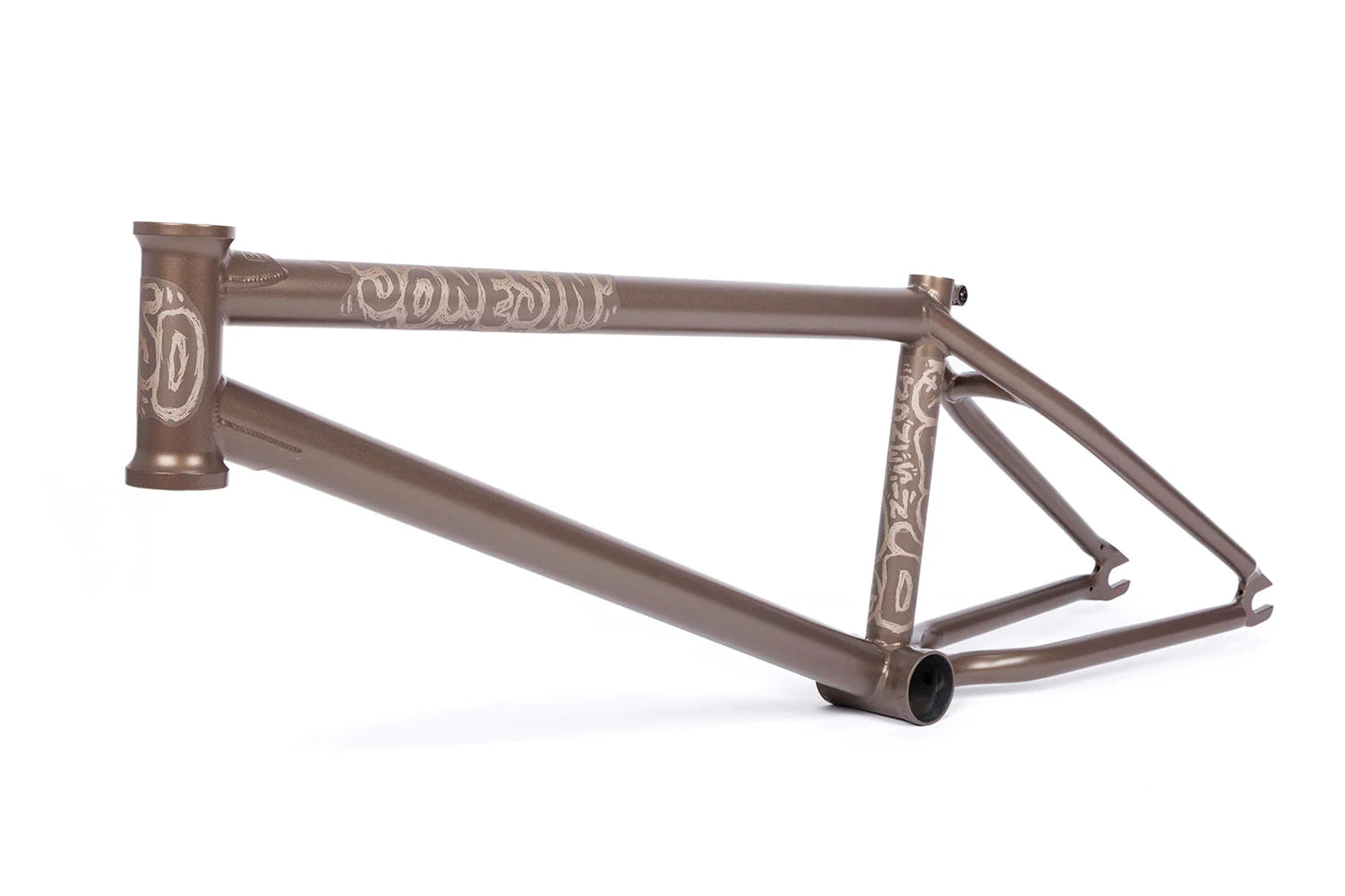

BSD JONESIN FRAME
BSD JONESIN FRAME
Regular price
$656.95 CAD
Regular price
Sale price
$656.95 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Jonesin’ frame is Sam Jones' signature frame. As you may know, Sam is a master of front-end tricks, and he designed his new frame with a steep 76° head angle specifically for those moves. It also features a short 12.7–13.2" rear end, a 8.9” standover height, and our new superscoop chainstay tubing for added tire clearance.
| Toptube lengths | 20.4 / 20.6 / 20.8 / 21 |
| Headtube angle | 76° |
| Headtube length | 117mm |
| Seattube angle | 71° |
| Rear end length | 12.7-13.2" |
| BB Height | 11.7" |
| Standover height | 8.9" |
| Weight | 5lbs |
| Brake mounts | none - brakeless |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Chainstay | SuperScoop tubing |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Built in |
| Colours | BRONZE AGED / FLAT BLACK / CUPPA CABANA / APRICOT / FLAT RAW |
