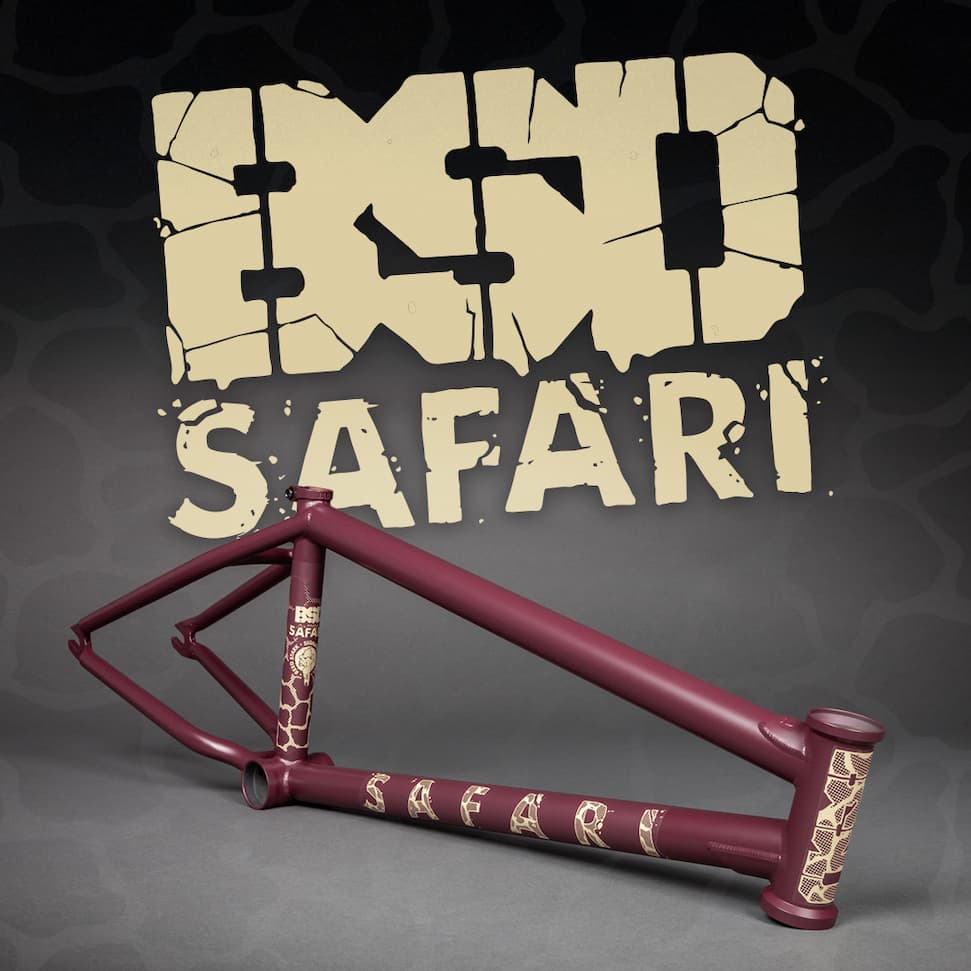

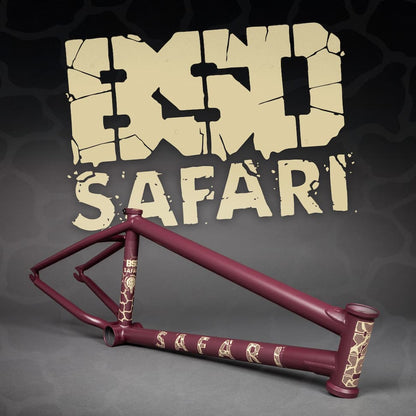

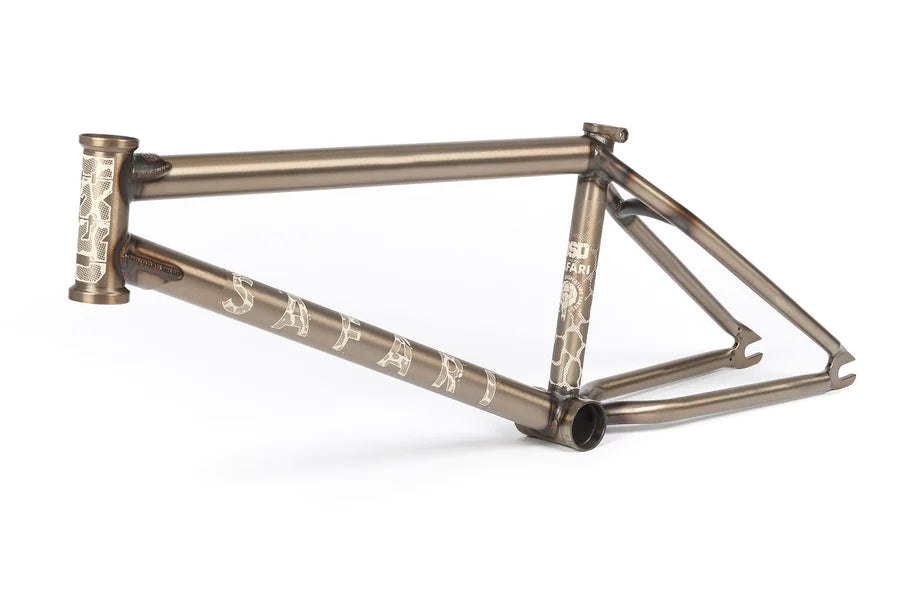

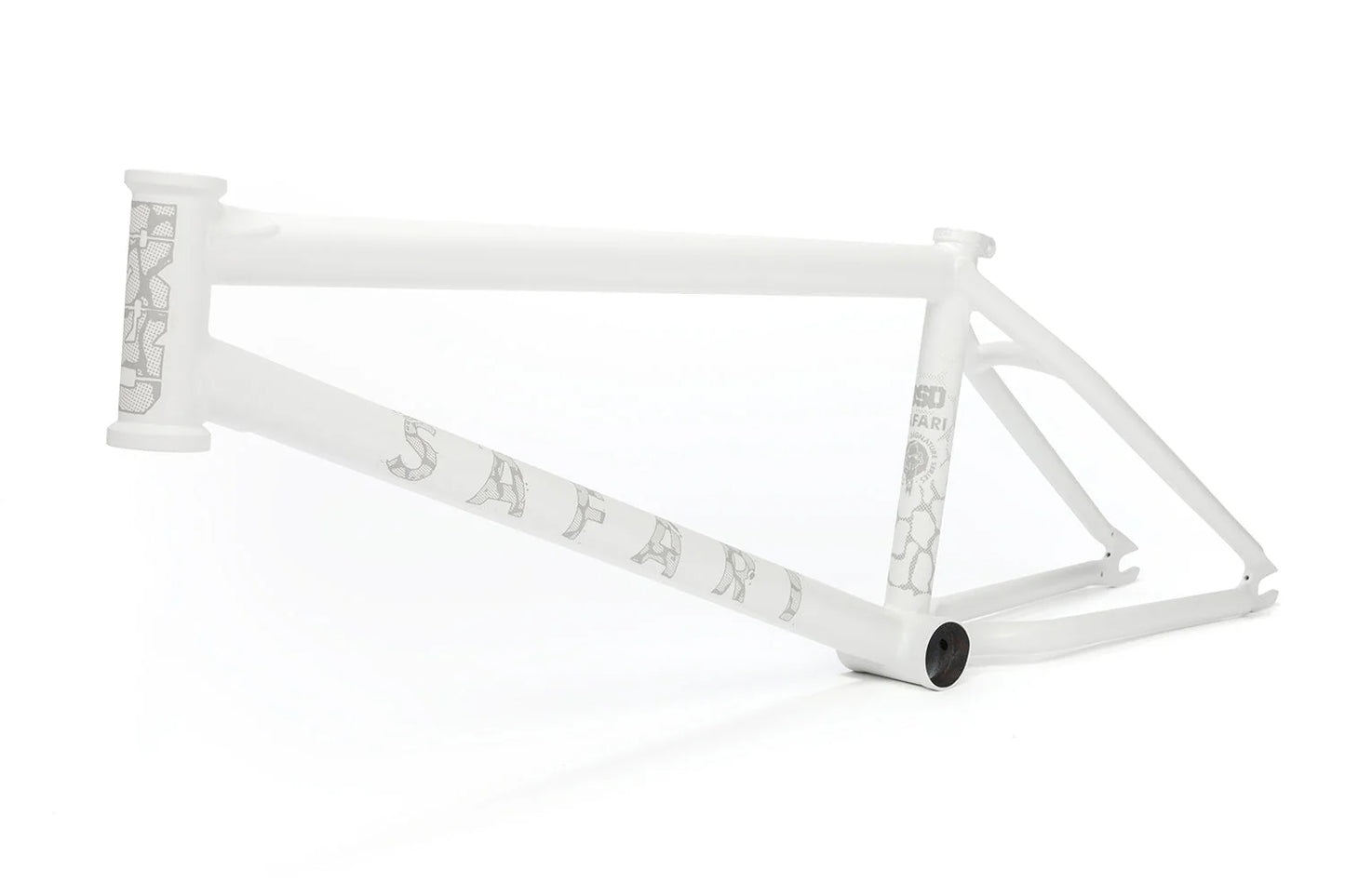

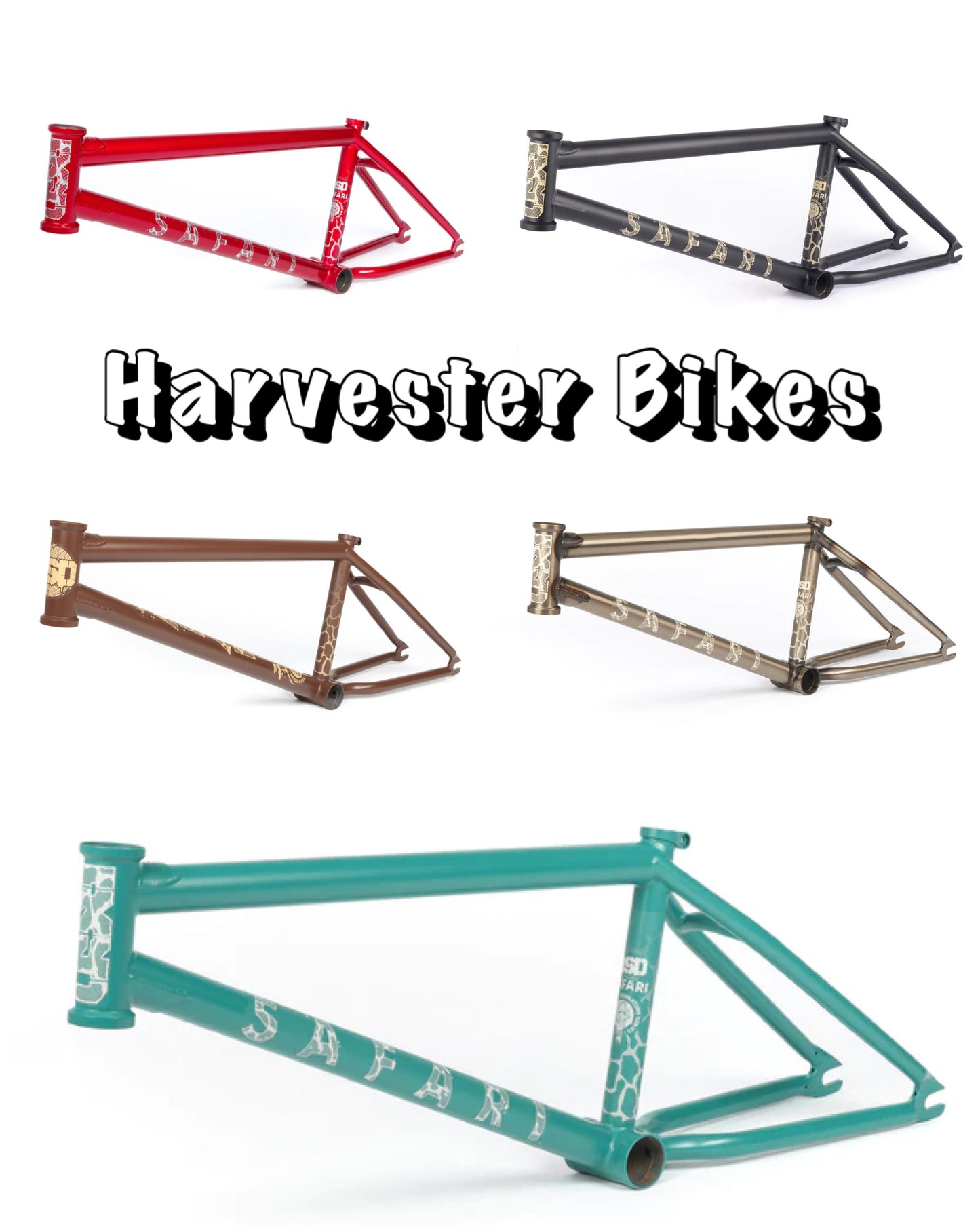

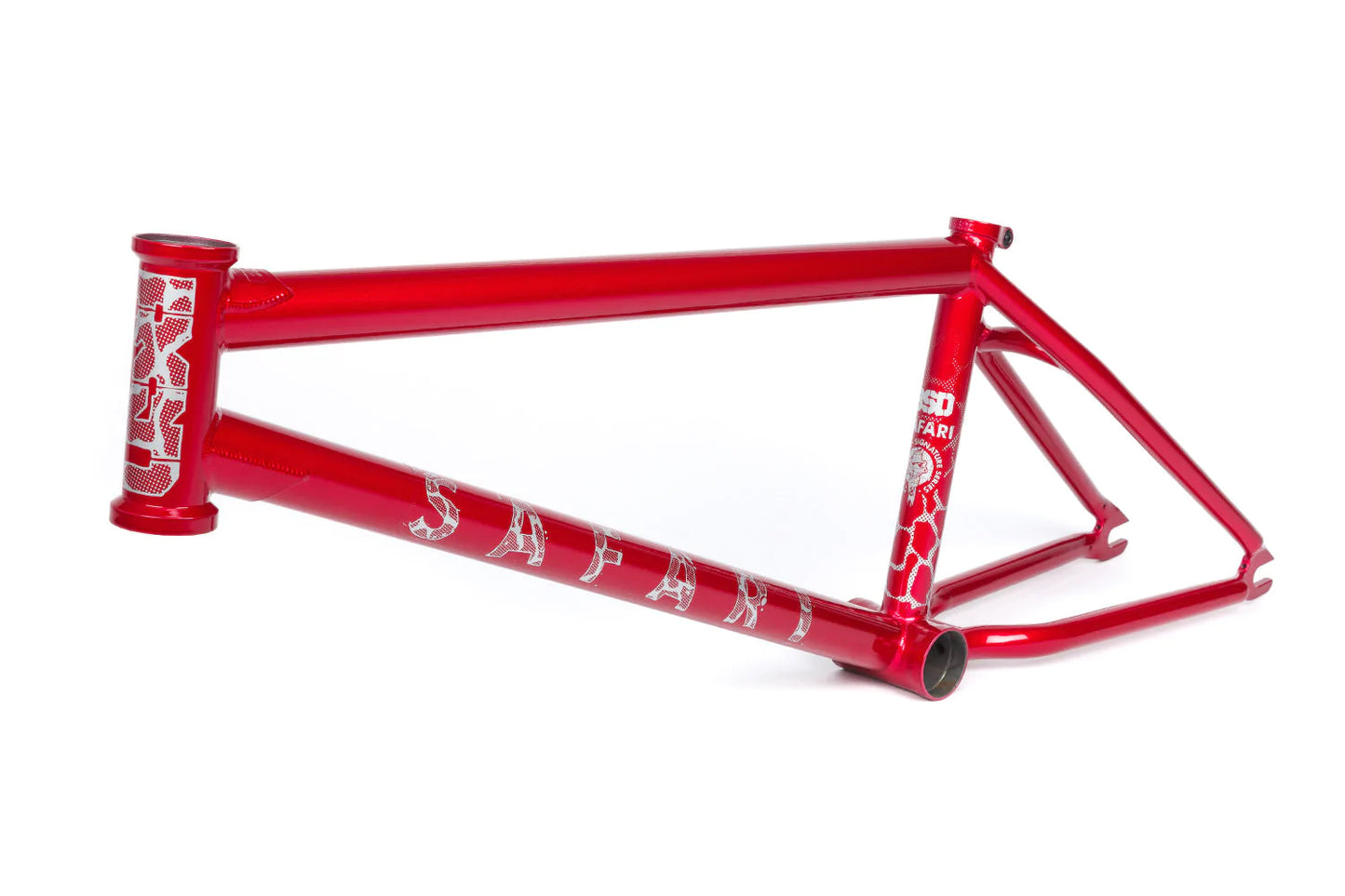

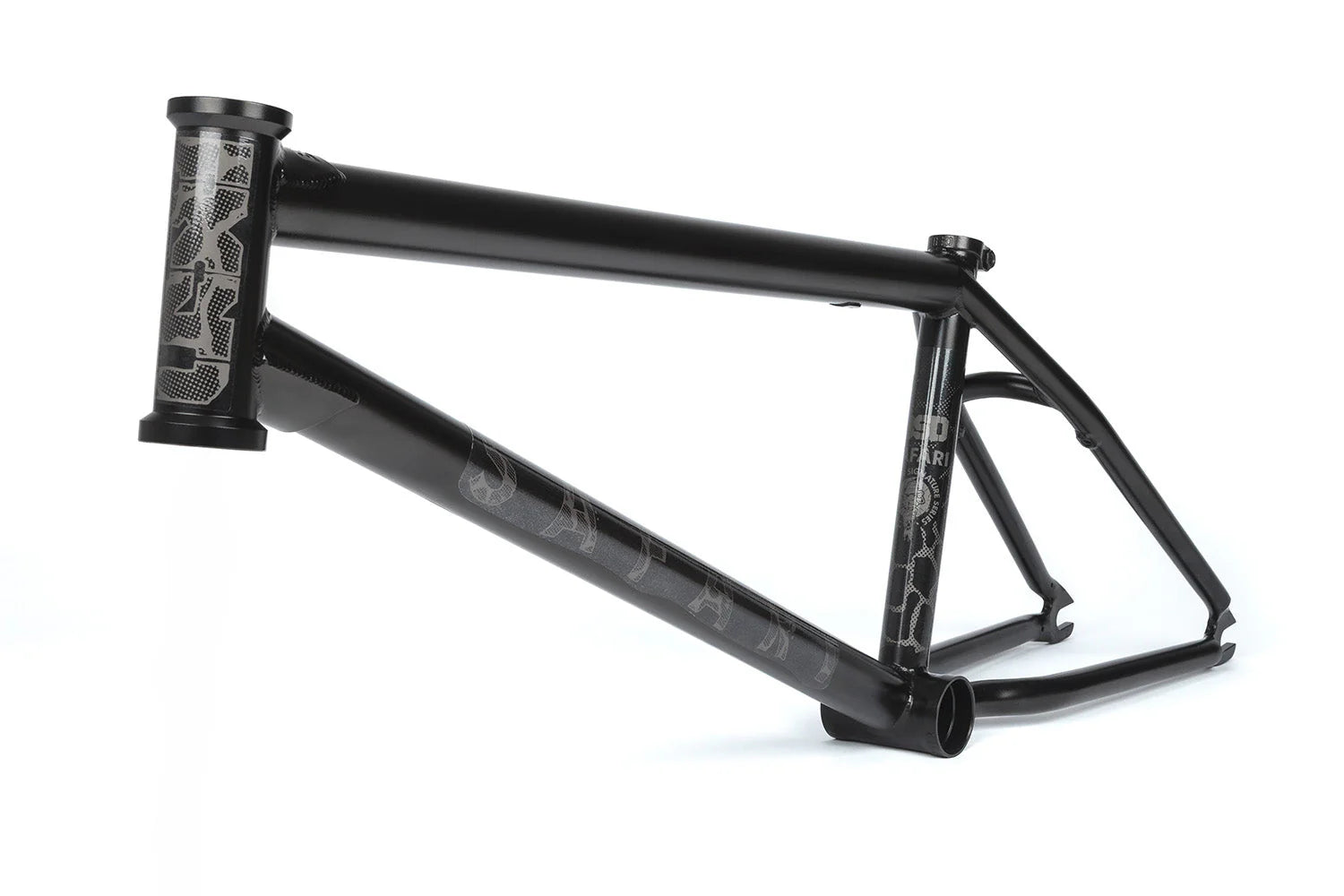

BSD Safari "Reed Stark" Frame
BSD Safari "Reed Stark" Frame
Regular price
$639.99 CAD
Regular price
Sale price
$639.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
This is the latest version of Reed Stark's signature Safari frame, now updated with a shorter 12.8–13.2" rear end, which is half a link shorter than the previous version. It also features our Superscoop chainstay tubing for extra tire clearance when your wheel is slammed. The Safari frame is designed to Reed's specifications, with a super long front end paired with a short back end and a standard head angle. Simple, yet effective!
| Toptube lengths | 20.6 / 21 / 21.4 / 21.8 |
| Headtube angle | 75° |
| Headtube length | 123mm |
| Seattube angle | 71° |
| Rear end length | 12.8-13.2" |
| BB Height | 11.75" |
| Standover height | 9.5" |
| Weight | 5.3lbs |
| Brake mounts | none - brakeless |
| Tubing | Sanko Japanese seamless 4130 CrMo / triple butted |
| Headtube | Heat treated 4130 CrMo / CNC / Offset thickness |
| Bottom Bracket | Heat treated 4130 CrMo / CNC machined |
| Chainstay | SuperScoop tubing |
| Dropouts | Heat treated 4130 CrMo / Invest cast |
| Seatclamp | Heat treated 4130 CrMo / Invest cast |
