ECLAT MAVERICK 3PC CRANK

MAVERICK CRANK

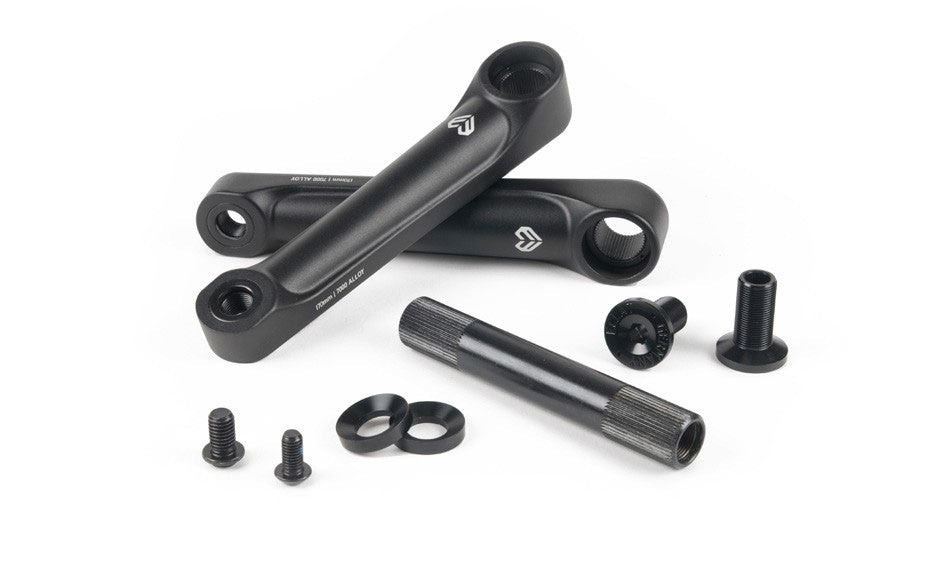

Behold the MAVERICK cranks. These cranks are all about strength, as anyone who’s ever snapped a pair of cranks will know, its usually at the welding where things let go. This is where alloy comes into its own, being able to forge in a 3D shape means you can avoid the welding, and therefore the weak spot. What’s totally unique about the Mavericks is their use of a regular 48 spline. Until now alloy cranks were only available with a mountain bike style square spindle and a pinch bolt on the arm. We wanted to raise the bar and clean up the looks, and thanks to a heat treated crmo insert into the alloy its all been made possible. The spindle boss has received the same treatment, and a new approach to the design of this area means troublesome threads are a thing of the past.

Specifications

Material Cold forged 7000 series alloy Length 170mm or 175mm Axle 22mm crmo ultra hollow
Colors black, gold, high polished
Features one piece forged alloy crank arm for ultimate strength / RSD & LSD compatible / heat treated crmo inserts at pedal and spindle bosses / compatible with splie and bolt drive sprockets / hollowed design for reduced
Weight Other comes supplied with assembly tool and 6mm allen key
Weight (spline/bolt) complete: 981g (34.6oz : 2.16lbs) 175mm
