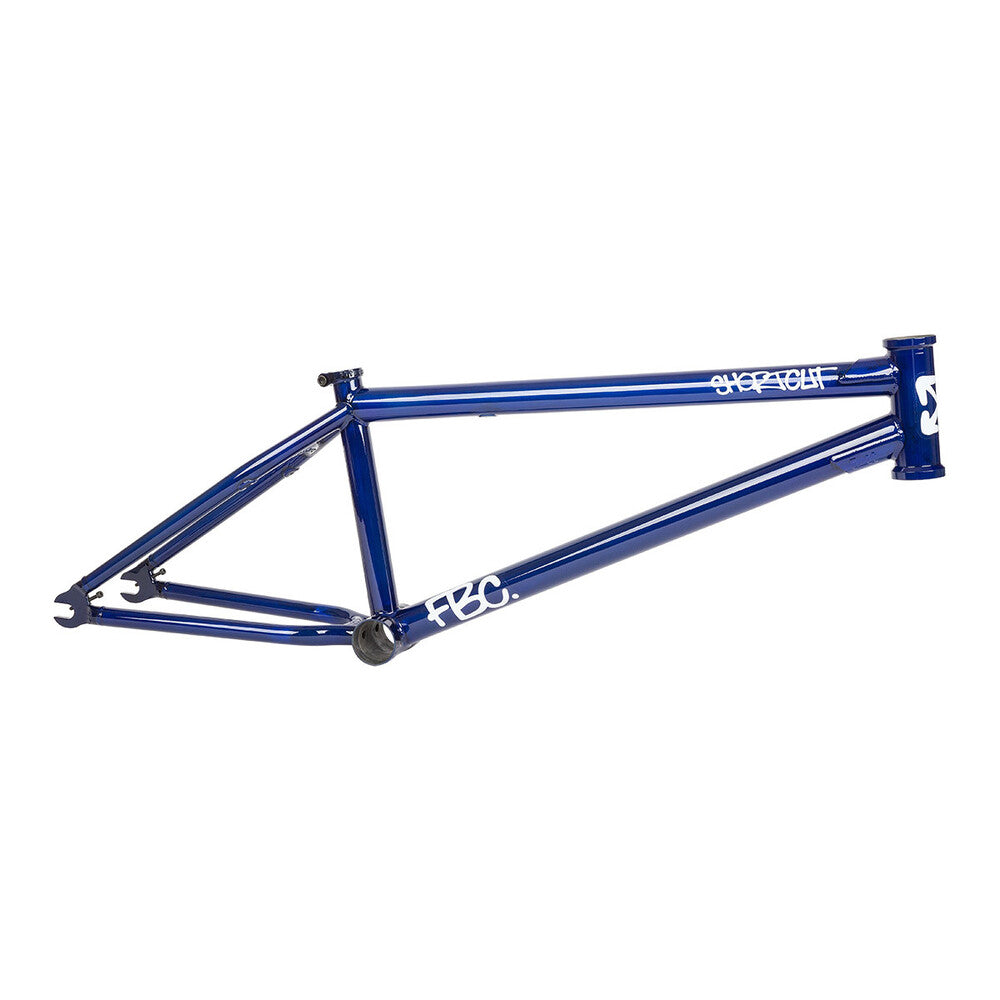

FIT SHORTCUT V2 FRAME
FIT SHORTCUT V2 FRAME
Couldn't load pickup availability
The Shortcut V2 frame features the shortest chainstay in BMX coming in at 12.4″. Designed with an investment cast chainstay yoke, we were able to shorten the rear-end while retaining maximum tire clearance. While the Shortcut is one of the most responsive frames on the market, it is also one of the most reliable. Investment cast dropouts with integrated chain tensioners are designed for heavy peg use without weld failures or wheel movement. The Shortcut V2 now comes in shorter top tube lengths and features a lower standover height. The Shortcut V2 is a smaller, more nimble frame, ideal for tech riders, park riders and anyone that wants to make learning new tricks a little easier.
Brake mounts sold separately.
SPECS>
| TOP TUBE LENGTH | 19.5″,20″,20.25 ″ |
| REAR END LENGTH | 12.4″ – 12.75″ |
| HEAD TUBE ANGLE | 75.5° |
| HEAD TUBE STYLE | Integrated (45°/45°, 41.8mm) |
| SEAT TUBE ANGLE | 71° |
| SEAT CLAMP | Integrated |
| SEAT POST SIZE | 25.4mm |
| BB HEIGHT | 11.7″ |
| BB STYLE | Mid |
| STANDOVER HEIGHT | 8.75″ |
| BRAKE MOUNTS | Thread-On |
| DROPOUTS | 14mm, Investment Cast w/Tensioners |
| GYRO TABS | None |
| WEIGHT | 5 lb / 2.27 kg (20.5″) |
| TUBESET | Butted |
