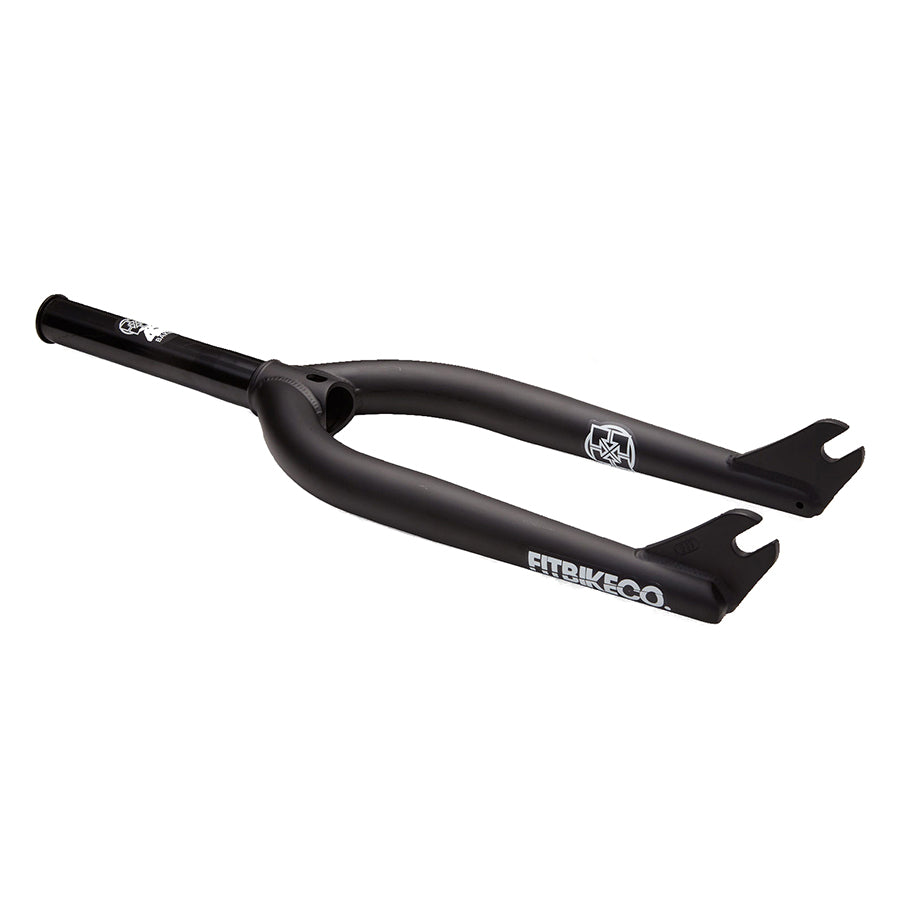

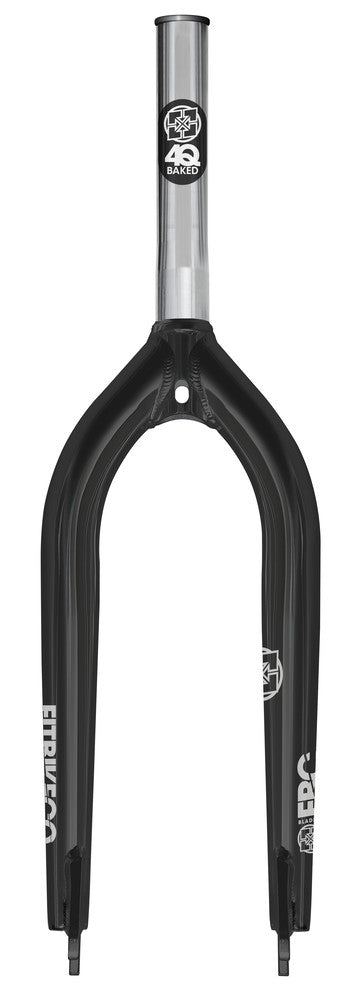

FIT BLADE V3 FORK 25MM

Our goal was to design and produce an extremely strong fork with plenty of tire clearance. After 2 years of R&D and a lot of investment in tooling, the Blade V.3 is available with a traditional 33mm offset. Here are a few features that make these forks so strong.

• Using left and right specific investment cast drop-outs instead of traditional Cr-Mo plate, we’ve eliminated the weld gap on the inside of the drops, and were able to thicken up the drops toward the top making a much stronger drop-out/leg connection.
• Seamless, swaged legs provide more strength than welded or fused caps-especially if pegs are installed. The ends of these legs are formed, not capped and welded so there is nothing to fracture.
• A longer 166mm CNC’d steerer tube with increased wall thicknesses wherever possible and a 24mm x 1.5 compression cap with integrated race.
• Tapered and butted legs provide tons of strength, crown weld surface, and peg clearance.
• Post weld 4Q Baked heat-treatment

SPECS >

• Legs
• Dropouts
• Steerer Tube
• Steerer Tube Length
• Compression
• Axle to Crown
• Offset
• Weight
• Heat Treat

• Seamless Swaged (No Welded Cap)
• Investment Cast
• 1 Piece CNC-Machined 4130 CrMo
• 166mm
• M24 X 1.5 Thread – 6mm Allen Slot
• 320mm
• 33mm
• 2.25 lb (1.02 kg)
• 4Q Baked Post-Weld
