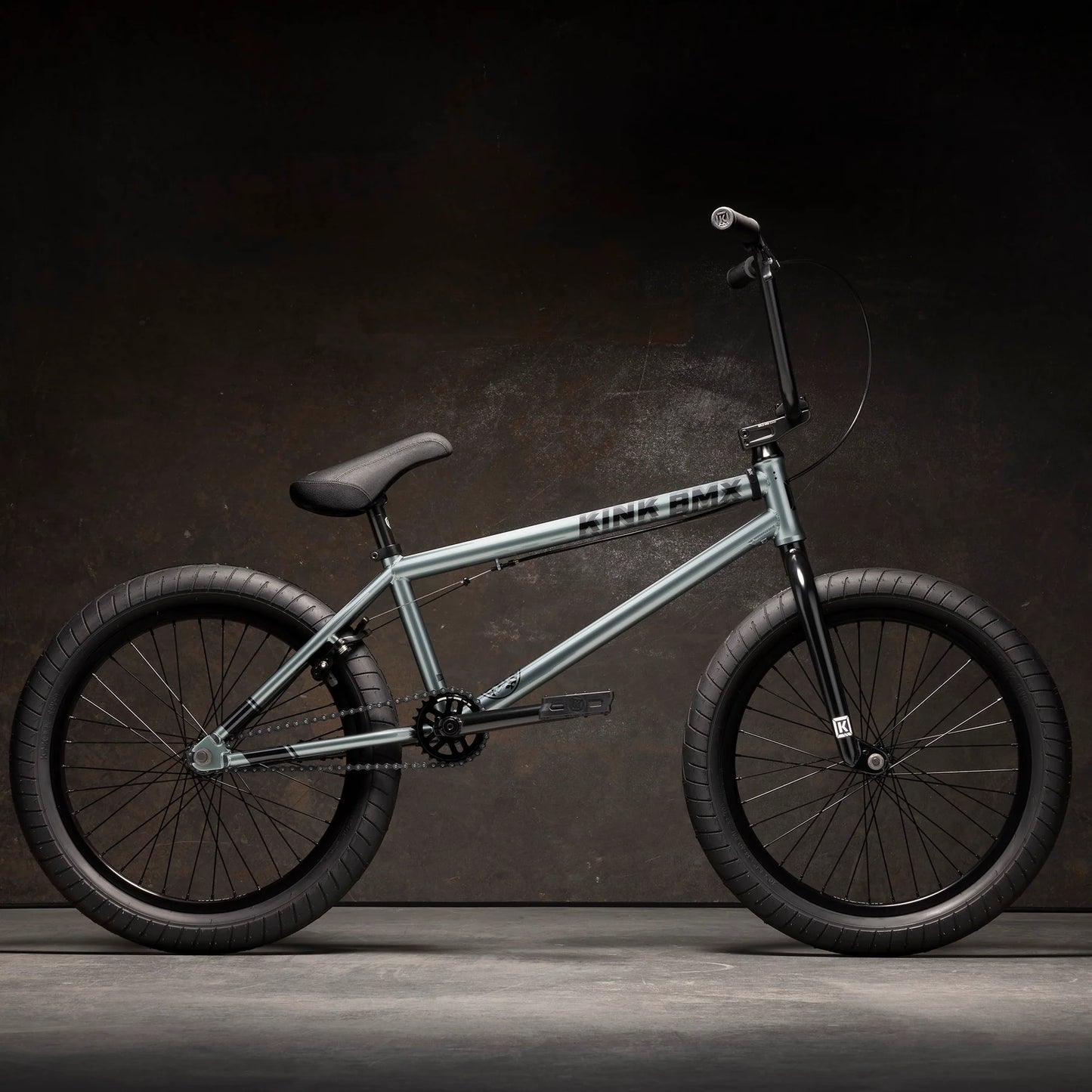

2025 Kink Whip (FULL CHROMOLY)
2025 Kink Whip (FULL CHROMOLY)
Couldn't load pickup availability
The Whip is where our line really gets exciting. This beast is constructed using full 100% 4130 chromoly throughout the entire frame, fork, and handlebar set. Complimenting this strong, durable structure are sealed bearings everywhere; headset, bottom bracket, and both front and rear hubs. Both wheels are laced up with Mission Mylar rims, giving this bike double wall rims front and rear. Topping off all the great functionality, the Whip comes in a Matte Moss Black colorway.
Featuring Kink Stryker forks, 9” Kink T900 bars and Kink Ridge 3-piece tubular chromoly cranks, the Whip is fitted with great components featuring modern geometry. Adding to all these specs are the comfortable Kink Form flangeless grips, Kink Hemlock pedals, and Mission Charge sprocket. Retailing for a price everyone can agree with, the Whip cannot be beaten.
Taxes, shipping, destination charge, and/or assembly fees may apply.
GEOMETRY
| Toptube Length | 20.5" |
| Chainstay Length | 13.25" |
| Headtube Angle | 75° |
| Seattube Angle | 71° |
| Standover Height | 9″ |
| Bottom Bracket Height | 11.6" |
| Fork Offset | 32mm |
TECH SPECS
| FRAME Kink Whip 100% 4130 Chromoly | PEDALS Kink Hemlock |
| FORK Kink Stryker 100% 4130 Chromoly Tapered Fork Legs | CHAIN Mission 410 |
| BARS Kink T900 9" 100% 4130 Chromoly | SPROCKET Mission Charge 25T 6061 Aluminum |
| GRIPS Kink Form, Thrust Barends |
SEAT Kink Duran Stealth |
| STEM Kink Bold HRD 50mm | SEAT POST Mission Stealth |
| HEADSET Mission Sealed Integrated (41.8 x 45) | SEAT CLAMP Mission Slim Clamp |
| BRAKE LEVER Mission Token | FRONT HUB Mission Foxtrot Sealed 3/8″ Axle |
| BRAKE CABLE Mission L4 Linear | REAR HUB Mission Engage Sealed Cassette 14mm |
| BRAKES Mission Cease V2 | DRIVER 9T |
| CRANKS Kink Ridge 3pc Tubular Chromoly 170mm – 8 Spline | RIMS Mission Mylar |
| BOTTOM BRACKET Sealed Mid 19mm | TIRES Kink Sever 2.4" |
| PEGS N/A | WEIGHT 27lb 11oz |
