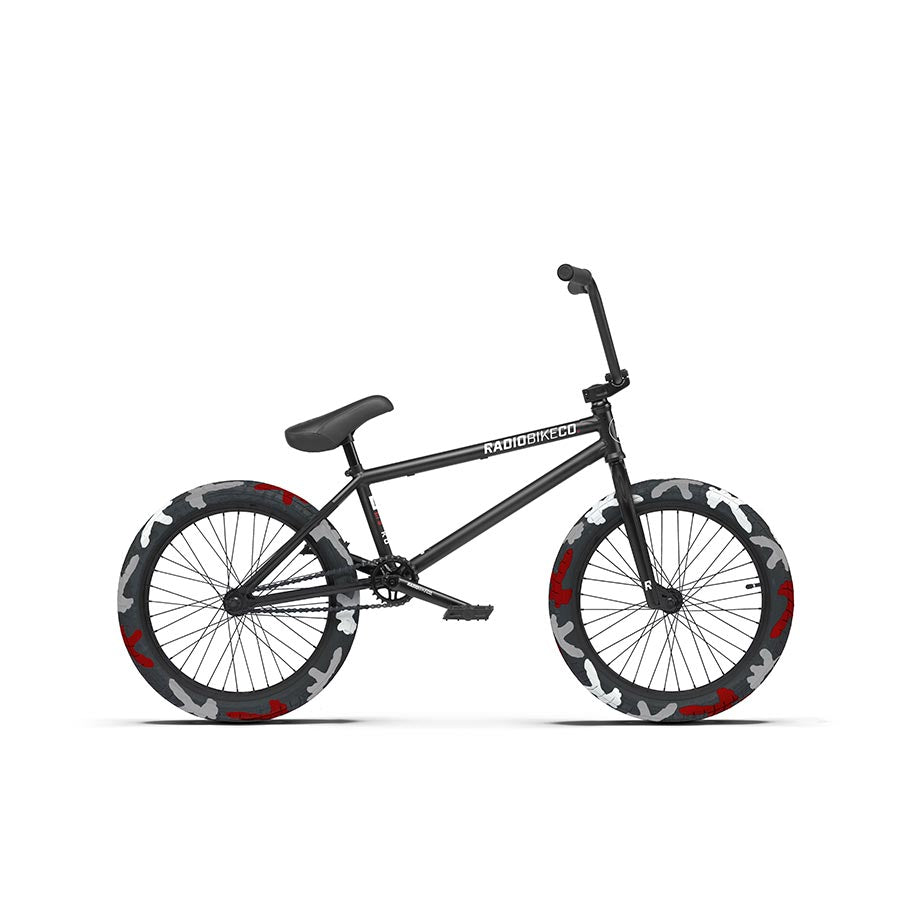

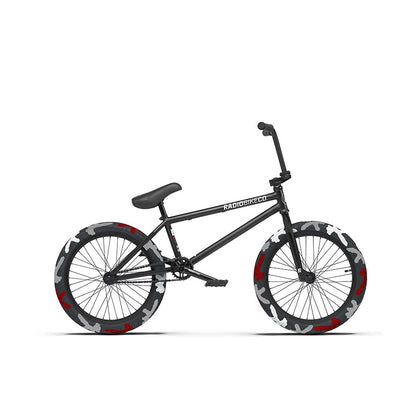

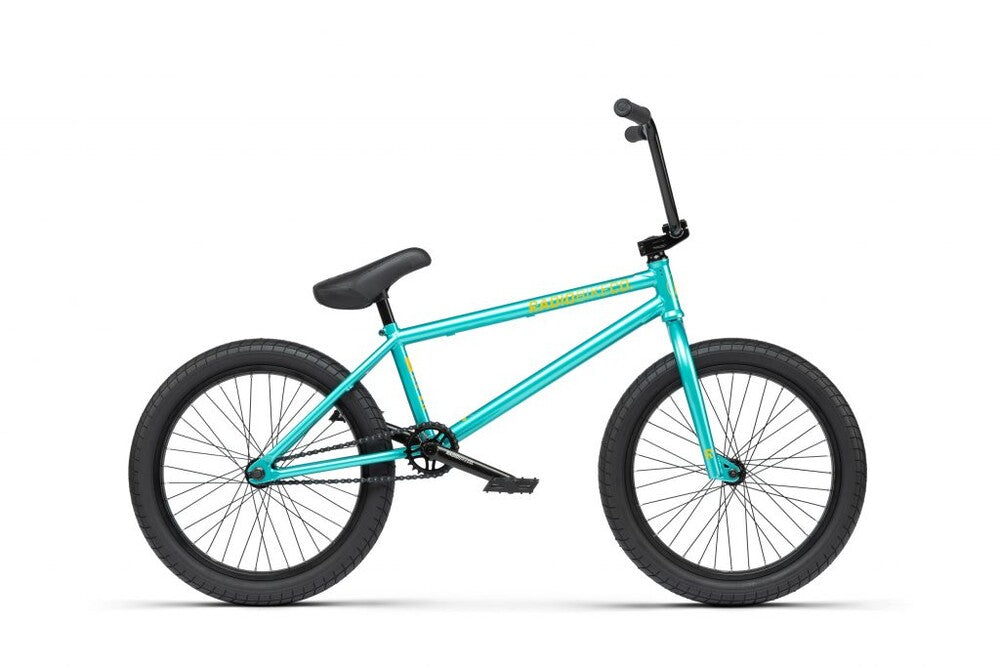

Radio Darko

Radio Darko

$649.99 CAD
$814.99 CAD $649.99 CAD
Sale Sold out
Shipping calculated at checkout.
Size

AVAILABLE IN A CHOICE OF 20.5” OR 21” TOP TUBE LENGTHS, THE DARKO IS A WELL SPEC’D, AND VIBRANT BIKE FOR THE NEW-SCHOOL STREET SHREDDER. THE FRAME COMES WITH FULLY REMOVABLE BRAKE HARDWARE AND THE BARS USE THE FLANGELESS RADIO XL GRIPS GIVING THE DARKO A SLEEK AND MODERN LOOK. A FAT COMBO SEAT, A SHORTER 13.2” CHAINSTAY AND TWO RADICAL COLOURWAYS FINISH OFF THIS INCREDIBLE BIKE BUILT FOR THE STREETS.

FRAME RADIO “DARKO” frame, crmo top tube & down tube, 1020 hi-ten, removable brake mounts & guides
FORK RADIO “AM” fork, 1020 hi-ten, crmo steerer, tapered legs
HANDLEBAR RADIO “DARKO” bar, 1020 hi-ten
GRIPS RADIO “AM XL” grips, 160mm
STEM SALT “PRO” top loading stem, 50mm reach
HEADSET SALT “PRO” int. headset, sealed bearing
GYRO holes for removable tabs
BRAKE LEVER RADIO “AM” alloy brake lever
BRAKE RADIO “AM” alloy u-brake rear
CRANK RADIO “AM” 3pc crank, tubular, crmo, 170mm, 8 spline
BB Mid size, press fit, sealed bearing
PEDALS RADIO “PRO” Nylon Fibreglass Pedals
CHAIN SALT “AM” chain, WZ1 type
SPROCKET RADIO “VISION” steel 25t sprocket
DRIVER 9T cassette driver, sealed bearing
FRONT HUB SALT “AM” hub, alloy, loose ball, 3/8″s male axle, 36h
REAR HUB RADIO “AM” cassette hub, alloy, semi-sealed, 9t, 14mm axle, 36h
FRONT RIM SALT “FRACTION” rim, single wall, 36h
REAR RIM SALT “FRACTION” rim, single wall, 36h
SEAT RADIO “CENTURY” fat padded combo seat
SEAT POST –
SEAT CLAMP Integrated slim seat clamp
TIRES SALTPLUS “BURN” tires, 2.35″ front & rear
WEIGHT 12.15kg / 26.80lbs
FRAME GEOMETRY
TOP TUBE LENGTH 20.5″ & 21″
CHAIN STAY LENGTH 13.2″
HEAD TUBE ANGLE 75°
SEAT TUBE ANGLE 71°
BOTTOM BRACKET HEIGHT 11.7″
STANDOVER HEIGHT 8.6″ / 8.9″
HANDLEBAR GEOMETRY
RISE 9″
WIDTH 29.5″
BACKSWEEP 12°
UPSWEEP 2°
