Radio Raceline

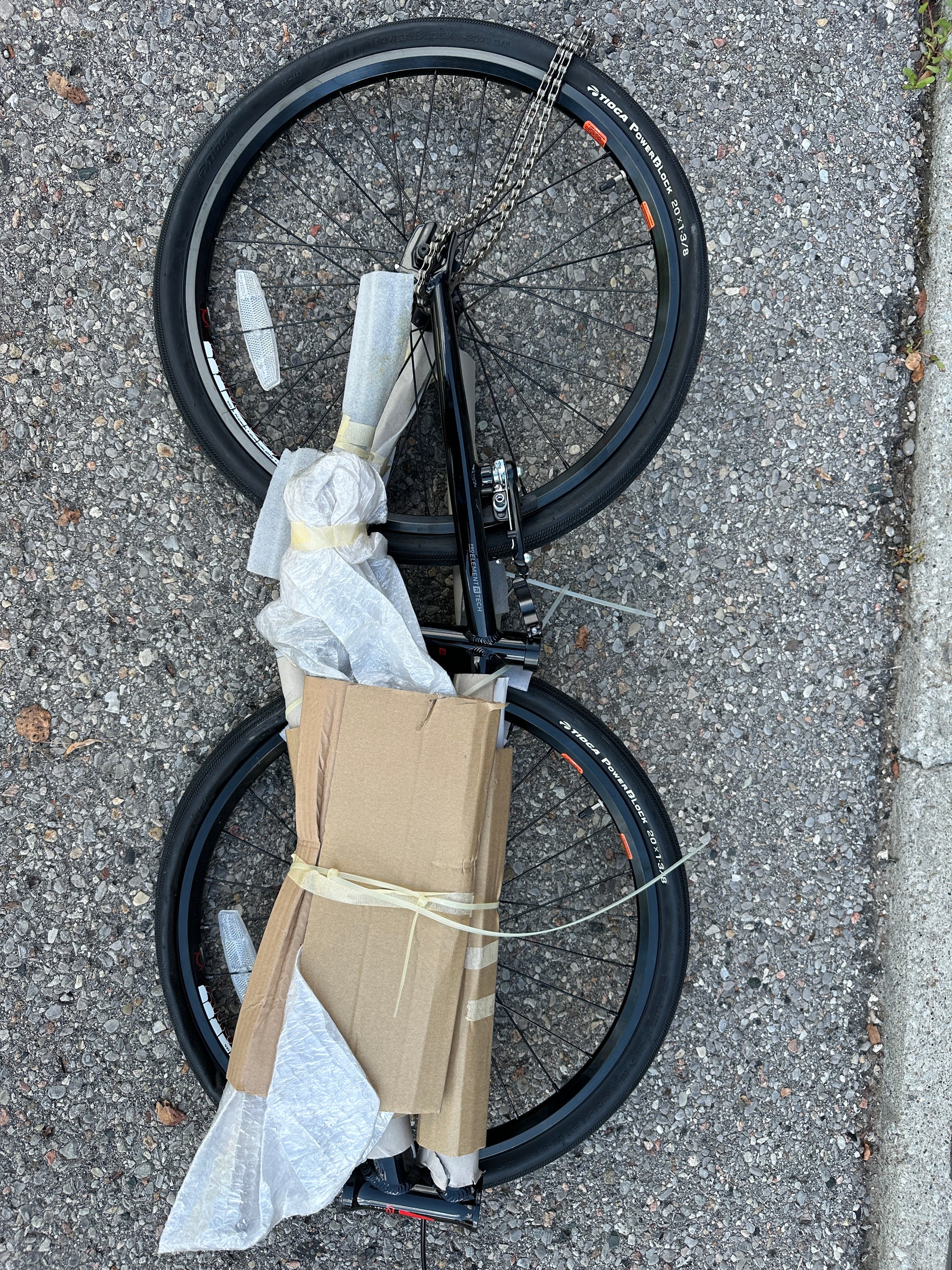

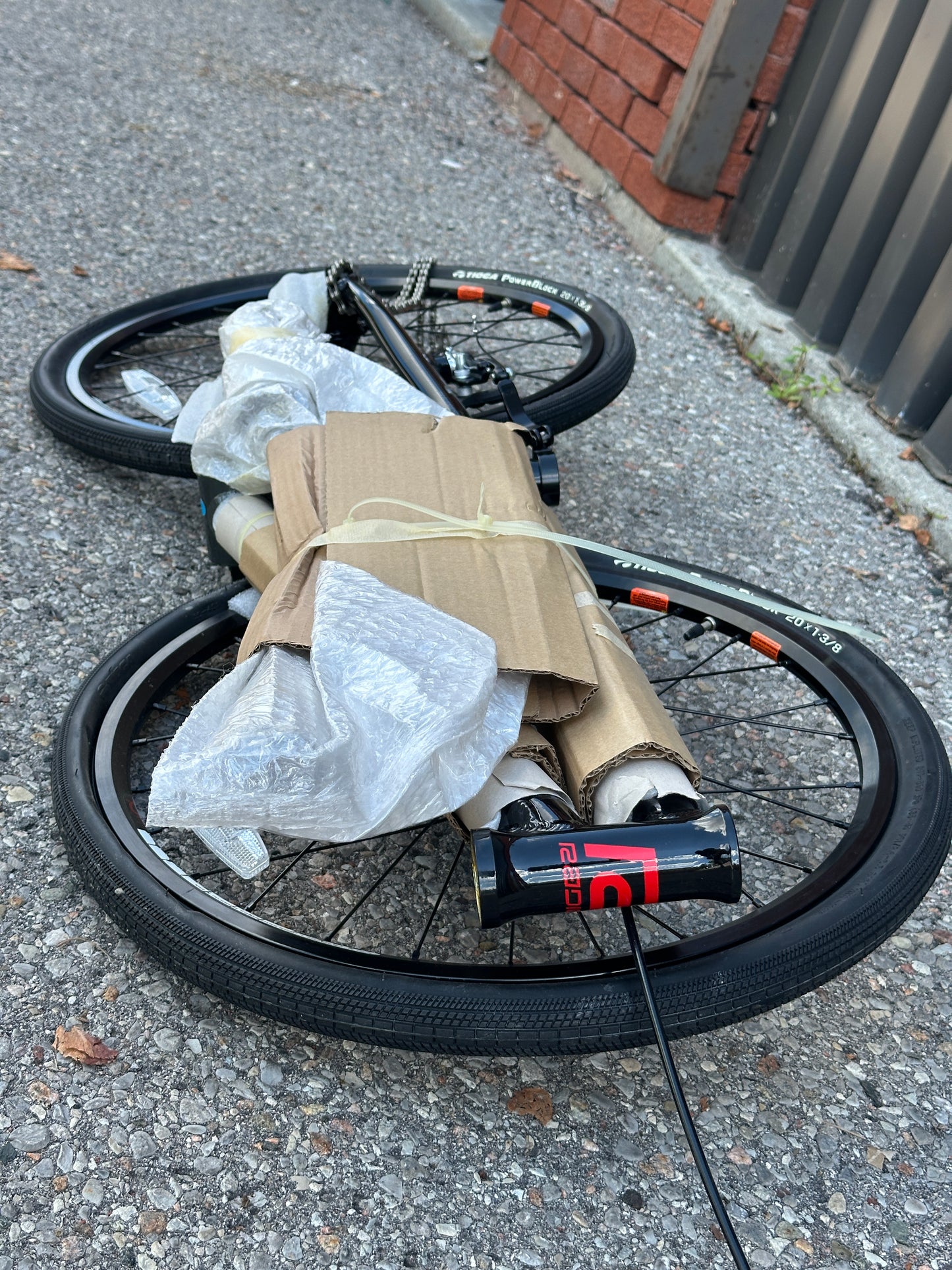

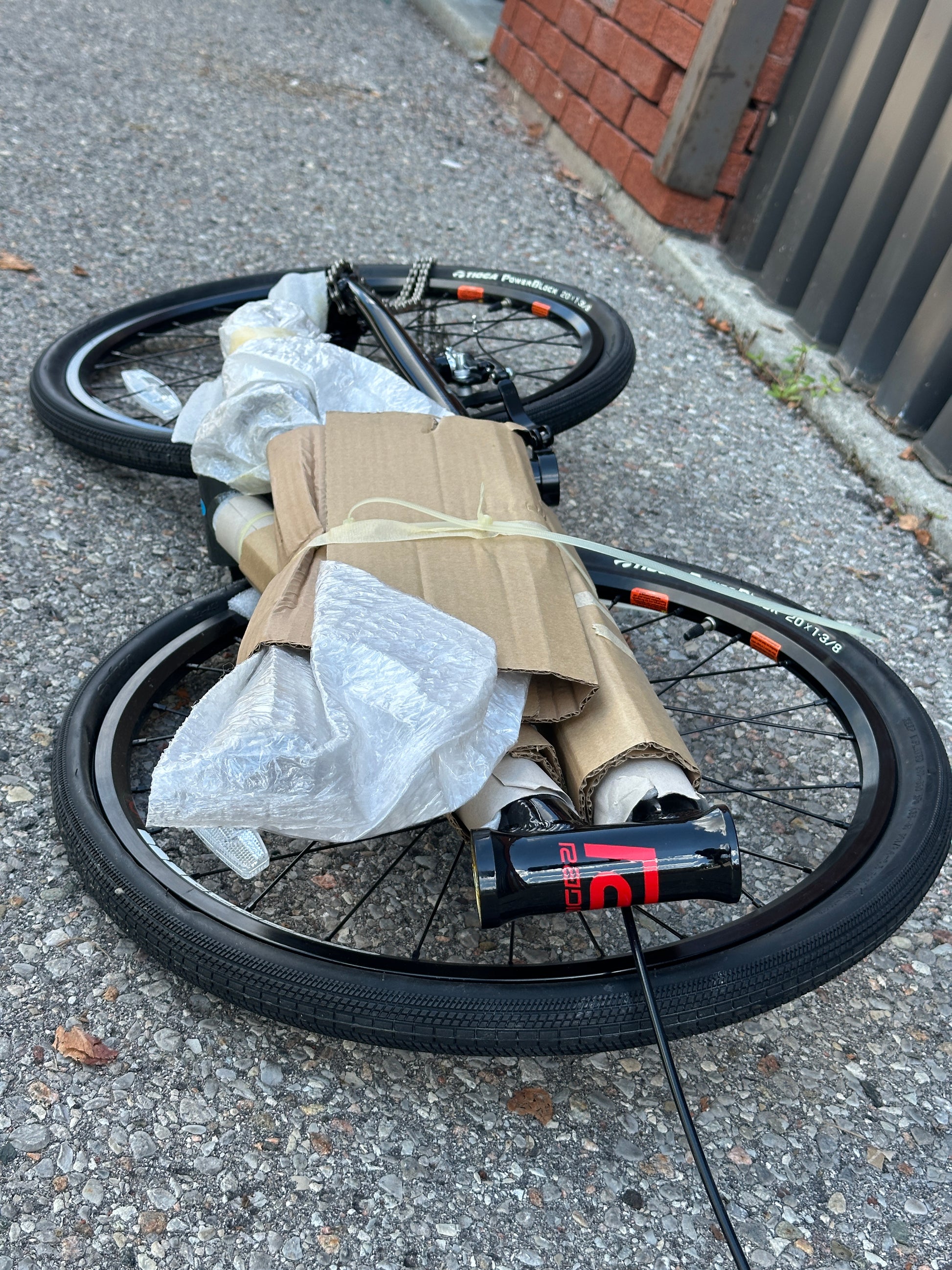

Radio Xenon Expert Race Bike (Missing Fork, Sprocket & Cranks)

Radio Xenon Expert Race Bike (Missing Fork, Sprocket & Cranks)

$499.99 CAD
$1,059.99 CAD $499.99 CAD
Sale Sold out
Shipping calculated at checkout.

The Xenon Expert is the next step on the ladder to the top. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. We spared no details here, from forged disc-ready dropouts with tensioners, our very own aftermarket Clipper Junior Rims, the Xenon is a natural born winner.

  • FRAME:Ā hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners
  • MISSING FORK:Ā crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset
  • HANDLEBAR:Ā 6061-T6 alloy bar
  • GRIPS:Ā RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 132mm length
  • STEM:Ā RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
  • HEADSET:Ā FSA "No.28" integrated headset, sealed, 1-1/8"
  • BRAKE LEVER:Ā PROMAX "XL-378" brake lever, rear
  • BRAKE:Ā PROMAX "MV-85" brake, rear
  • MISSING CRANK:Ā RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 165mm length
  • MISSING BB:Ā RADIO RACELINE BB set, BSA square taper, sealed
  • PEDALS:Ā RADIO RACELINE "XENON SLIM" pedal, alloy
  • CHAIN:Ā KMC "Z6" chain, 1/2" x 3/32"
  • MISSING SPROCKET:Ā RADIO RACELINE sprocket, 42T, alloy
  • DRIVER:Ā RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
  • FRONT HUB:Ā RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 28h, 3/8" crmo axle
  • REAR HUB:Ā RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 28h, disc brake cassette, 3/8" crmo axle
  • FRONT RIM:Ā RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
  • REAR RIM:Ā RADIO RACELINE "CLIPPER JUNIOR" rim, sleeved joint, 28h, alloy
  • SEAT:Ā RADIO RACELINE "XENON" pivotal seat, no padding
  • SEAT POST:Ā RADIO RACELINE seat post, 22.2mm, alloy
  • SEAT CLAMP:Ā RADIO RACELINE "XENON" seat post, quick-release, alloy
  • TIRES:Ā TIOGA "POWER-BLOCK" tires, 20" x 1-1/8"

Weight:Ā 8.19kg / 18.06lbs

Ā

Frame Geometry:

Top Tube Length 19.5"
Chain Stay Length 13.6"
Head Tube Angle 73.5Ā°
Seat Tube Angle 71Ā°
Bottom Bracket HeightĀ  10.8"

Ā

Handlebar Geometry:

Rise 5.75"
Width 24.4"
Backsweep 8Ā°
Upsweep 2Ā°
