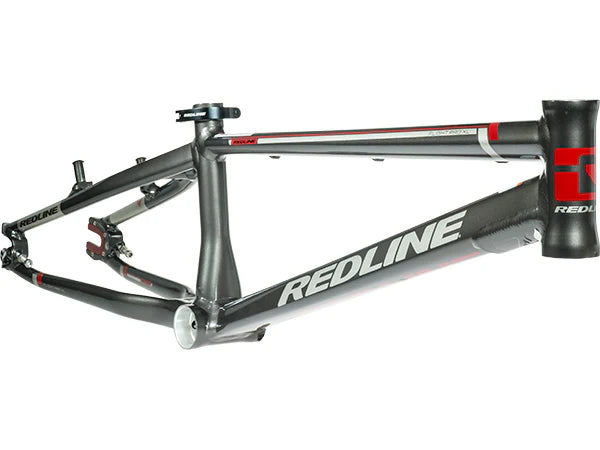

Redline Flight Team Pro XXL Frame-Grey
Redline Flight Team Pro XXL Frame-Grey
Regular price
$499.99 CAD
Regular price
Sale price
$499.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
TT: Top Tube | CS: Chain Stay | SA: Seat Angle | HA: Head Angle | H/S: Headset size
| SIZE |
TT |
CS |
H/S | HA | SA | SEAT CLAMP | SEAT POST | WEIGHT |
| MICRO | 16" | 11-12" | 1"(36°/45°) | 72° | 69° | 1" (25.4mm) | 22.2mm | 2lbs 2.7oz |
| MINI | 17.5" | 12.5-13.5" | 1"(36°/45°) | 72° | 69° | 1" (25.4mm) | 22.2mm | 2lbs 7.3oz |
| JUNIOR | 18.5" | 13-14" | 1"(36°/45°) | 73° | 69° | 1" (25.4mm) | 22.2mm | 2lbs 8.2oz |
| EXPERT | 19.5" | 13.25-14.25" | 1-1/8"(45°/45°) | 73° | 69° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 3.6oz |
| EXPERT XL |
20" | 13.25-14.25" | 1-1/8"(45°/45°) | 73° | 69° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 4.1oz |
| PRO |
20.5" | 13.75-15" | 1-1/8"(45°/45°) | 74° | 70° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 11.8oz |
| PRO XL |
21" | 14.75-16" | 1-1/8"(45°/45°) | 74° | 70° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 12.4oz |
| PRO XXL | 21.7" | 14.75-16" | 1-1/8"(45°/45°) | 74° | 70° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 12.9oz |
| PRO XXXL |
22.4" | 14.75-16" | 1-1/8"(45°/45°) | 74° | 70° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 12.6oz |
| JUNIOR 24" | 19.8" | 14.375-15.375" | 1"(36°/45°) | 73° | 69° | 1" (25.4mm) | 22.2mm | 2lbs 11.6oz |
| EXPERT 24" | 20.4" | 14.375-15.375" | 1-1/8"(45°/45°) | 73° | 69° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 5.9oz |
| PRO 24" | 21.8" | 14.5-16" | 1-1/8"(45°/45°) | 74° | 70° | 1 1/4" (31.8mm) | 26.8mm | 3lbs 12.9oz |
