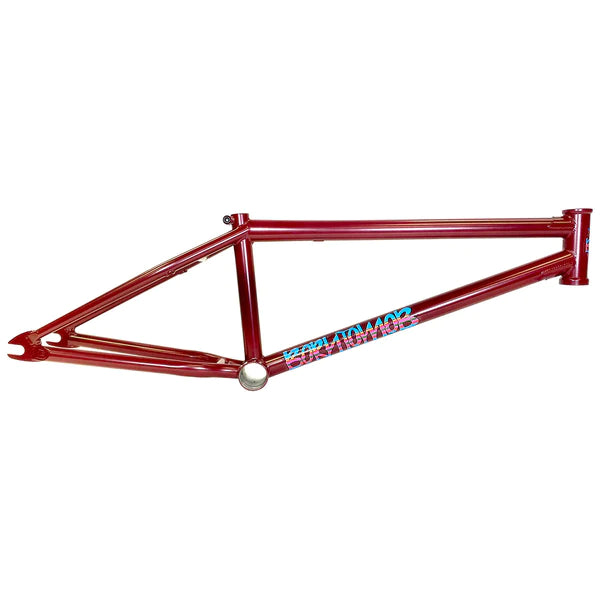

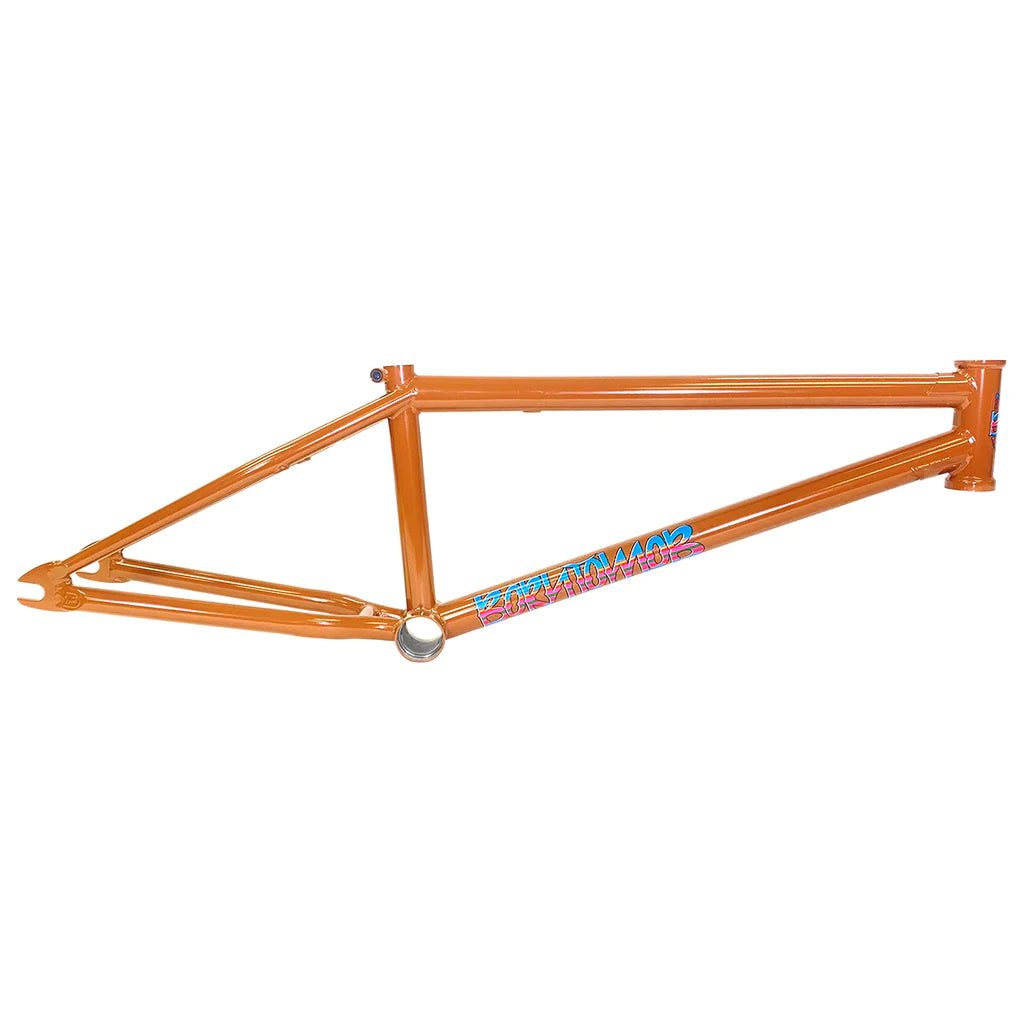

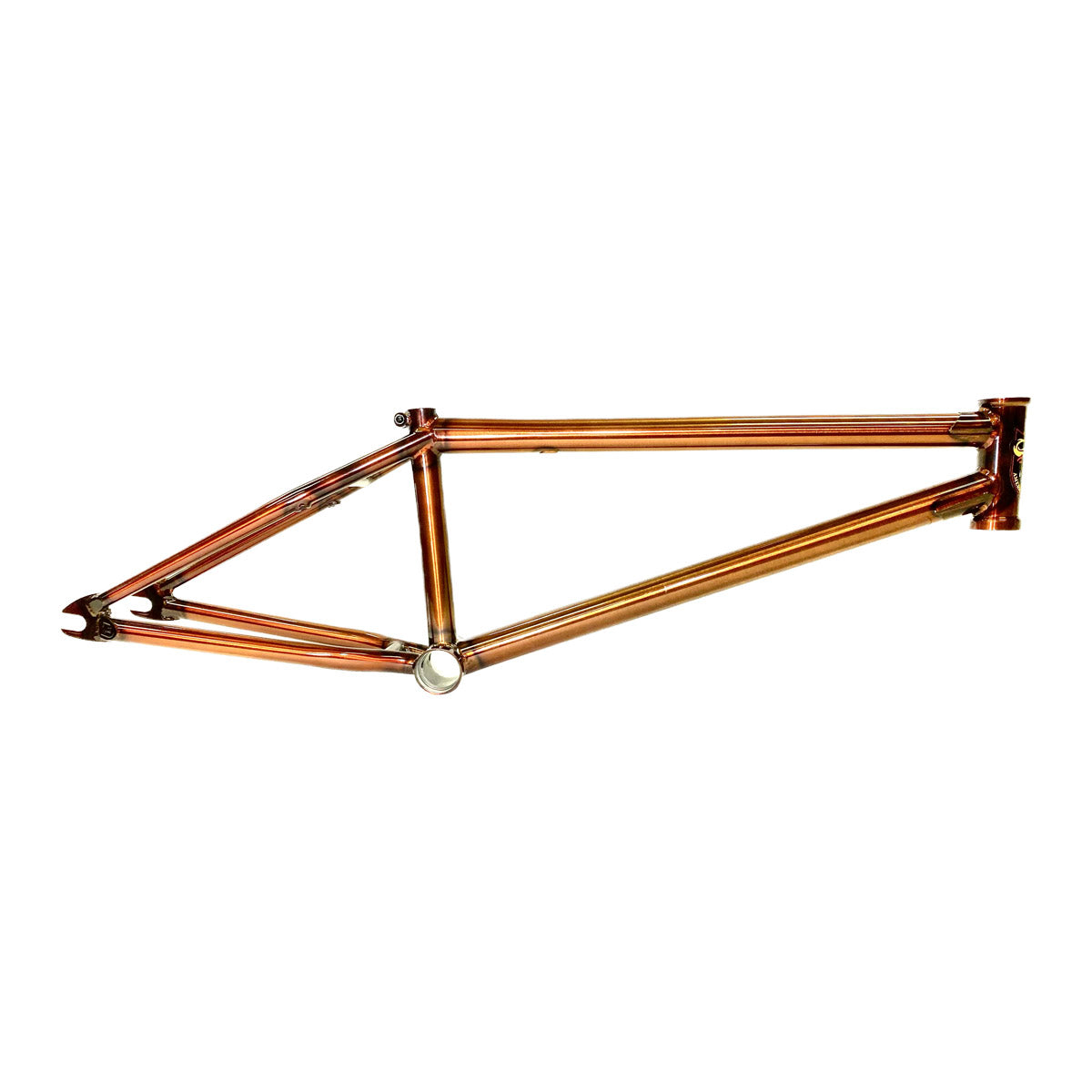

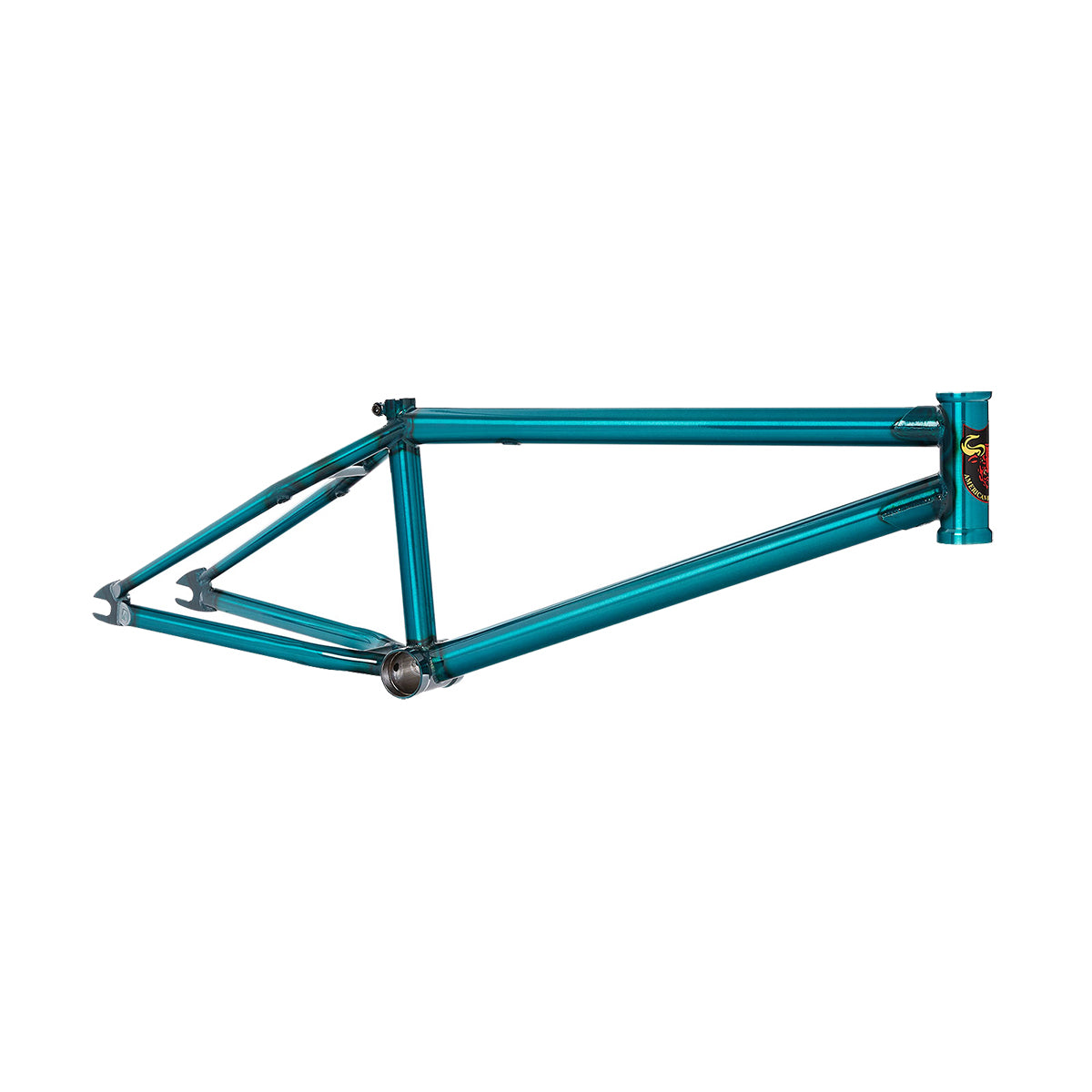

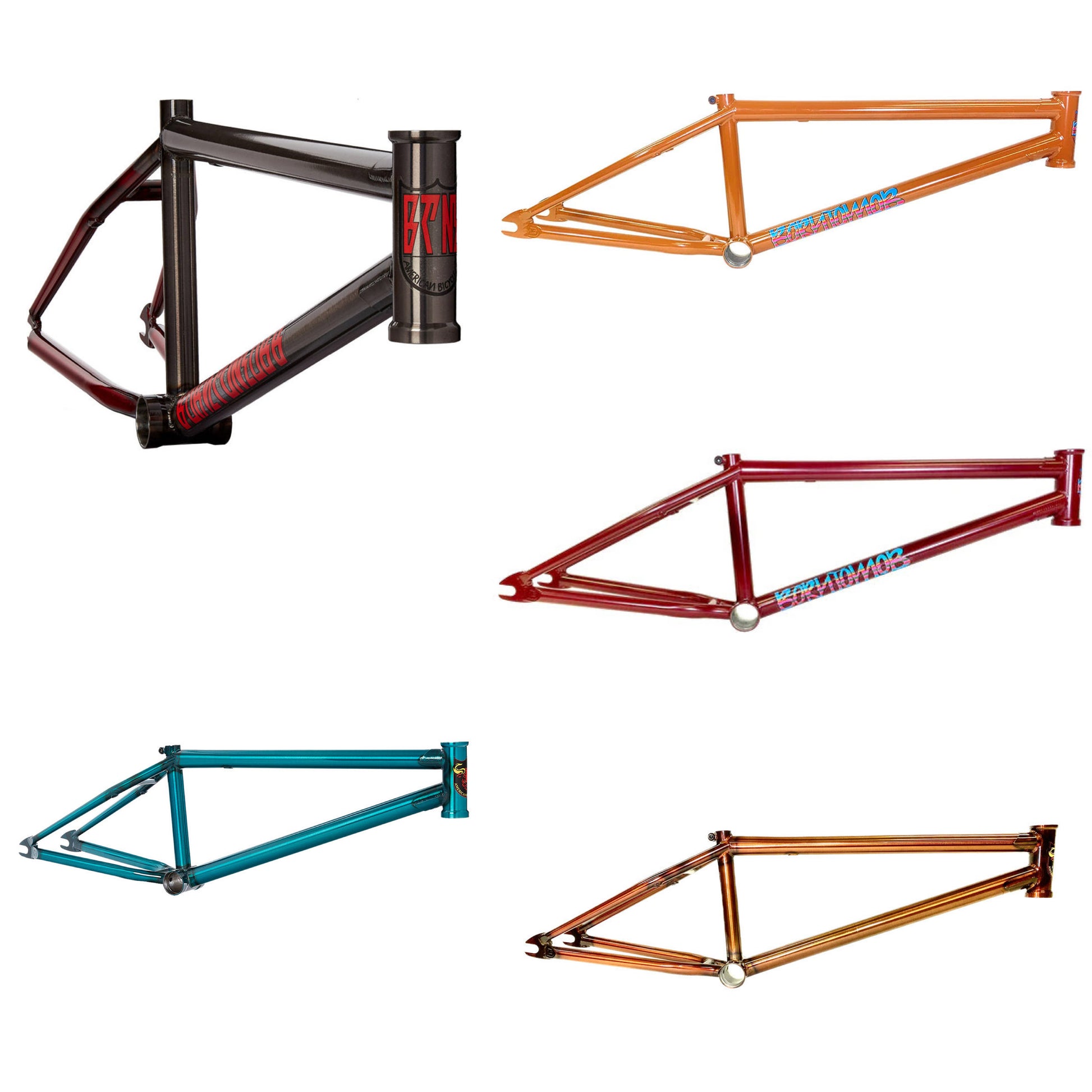

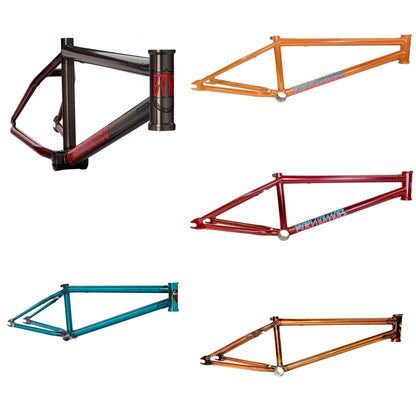

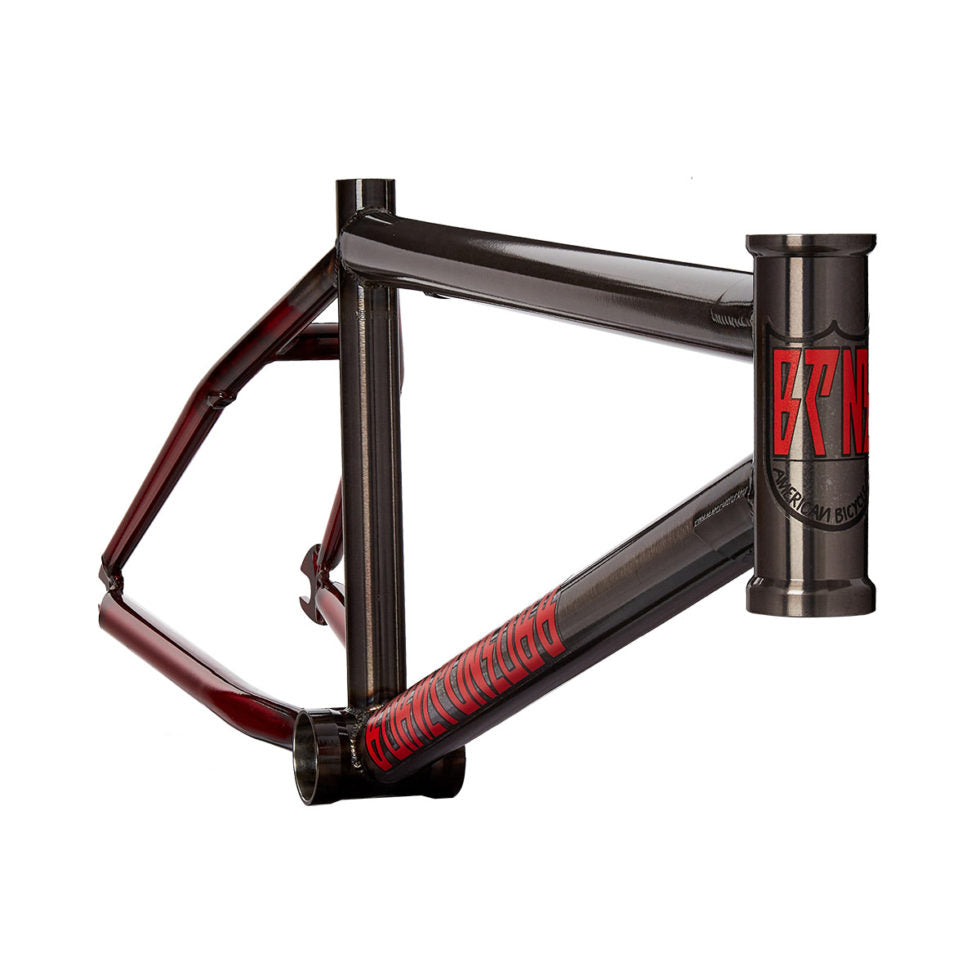

S&M BTM & BTM XL FRAME

S&M BTM & BTM XL FRAME

Regular price $699.99 CAD
Regular price Sale price $699.99 CAD
Sale Sold out
Shipping calculated at checkout.
Size
Color

Mike Hoder’s signature frame.

TOP TUBE LENGTHS: 20.5″,20.75″, 21″, 21.25″, 21.5″
REAR END LENGTH: 13.05″-13.50″
HEAD TUBE ANGLE: 75°
HEAD TUBE STYLE: Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE: 71°
SEAT CLAMP: Integrated
SEAT POST SIZE: 1″ (25.4mm)
BB HEIGHT: 11.5″
BB STYLE: Mid
STANDOVER HEIGHT: 8.75″
BRAKE MOUNTS: Thread-On 990 Mounts (sold separately)
DROPOUTS: 14mm Slot, 4Q-Baked
GYRO TABS: None
WEIGHT: 20.5”: 5lbs/2.26kg
20.75″: 5lbs/2.26kg
21″: 5.05lbs/2.29kg
21.25″: 5.10lbs/2.31kg
21.5″: 5.15lbs/2.33kg
TUBESET: Butted True Temper SuperTherm Tubing
