SE Bikes

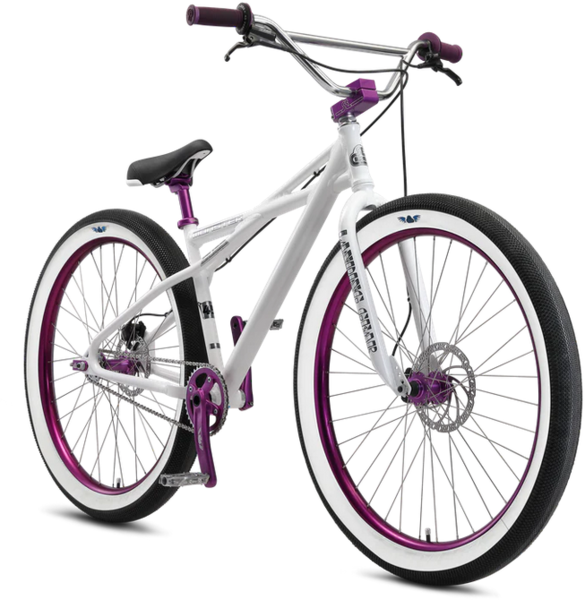

SE Bikes Monster Quad 29"+
SE Bikes Monster Quad 29"+
Regular price
$1,334.99 CAD
Regular price
$1,499.99 CAD
Sale price
$1,334.99 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
The Monster Quad is the ultimate definition of BMX Innovations. Built around huge 29” x 2.8” Vee Speedster tires, this bike is the world’s first 29+ BMX bike. The unique Monster Quad frame design features an oversized downtube, integrated headset, super stiff BB yoke, and a legendary looptail rear end. New this year, the Tektro Auriga hydraulic disc brakes really put this bike over the top. Watch out now, it’s a MONSTER!
Key Features
- 6061 Aluminum Monster Quad frame with oversized downtube, integrated headset and looptail rear end
- Full Cr-Mo Landing Gear forks
- SE Racing forged alloy 2-piece cranks with 24mm hollow alloy spindle, external sealed bearing bottom bracket and alloy chainring
- Vee Tire Co x SE Racing Speedster 29" x 2.8" tires
- Tektro Auriga hydraulic disc brakes with easy to adjust open system, dual piston, 160mm rear rotor, 180mm front rotor
- Authentic ODI Mushroom II grips with donuts
- Monster Flyer seat with bottle opener
- 34 pounds
| COLOR(S) | Cobalt Blue |
| FRAME | 6061 Aluminum, Single Downtube Monster Quad Design, Internally-machined Integrated Head Tube, Looptail Rear End, Retro Dropouts, 73mm Euro Bottom Bracket, 142mm Spaced Dropouts, Disc Brake Tabs |
| FORK | Landing Gear, Full Cr-Mo, Disc Tabs, 445mm Axle to Crown, 39mm Offset, 110mm Spaced Dropouts |
| CRANKSET | SE Racing 175mm Forged Alloy 2-pc Cranks, External Sealed Euro Bottom Bracket, 24mm Hollow Alloy Spindle, 39T Alloy Chainring |
| PEDALS | X-Pedo Low-profile Platform w/ Removable Pins |
| CHAIN | KMC |
| WHEELSET | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 142mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 20T Cassette, Stainless Spokes |
| TIRES | Vee Tire Co x SE Racing Speedster, 29" x 2.8" Front & Rear |
| BRAKESET | Tektro Auriga, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 180mm Front Rotor, 160mm Rear Rotor |
| BRAKE LEVERS | Tektro Auriga, 2-Finger Alloy, Front & Rear |
| HEADSET | FSA Orbit CE, Sealed 1-1/8" Integrated |
| HANDLEBAR | Big Honkin' Cr-Mo Cruiser Bar, 29" x 6", 10° Backsweep, 1° Upsweep |
| STEM | Retro Alloy Top-Load w/ Engraved SE Logo on Top & Sides, 55mm Reach |
| GRIPS | Special Edition ODI Mushroom II Dual-Ply Grips, Made in USA, w/ SE Donuts |
| SEAT | Monster Flyer Seat w/ Custom SE Bottle Opener Brace |
| SEATPOST | Micro-Adjust Alloy, 27.2mm |
| SEAT CLAMP | Alloy, 31.8mm Inner Diameter |
| ACCESSORIES | Alloy Valve Caps, SE Chain Tensioners |
| WEIGHT | 34 lbs / 15.42 kgs |
*Specifications subject to change without notice
GEOMETRY
| A | TOP TUBE, ACTUAL | 23.5" | |||||||||
| B | SEAT TUBE, CENTER TO TOP | 16.9" | |||||||||
| C | SEAT TUBE ANGLE | 71° | |||||||||
| D | HEAD TUBE ANGLE | 71° | |||||||||
| E | CHAINSTAY LENGTH | 18.3" | |||||||||
| F | WHEELBASE | 43.9" | |||||||||
| G | BOTTOM BRACKET HEIGHT | 13" | |||||||||
| H | STANDOVER | 30.5" | |||||||||
| SUGGESTED RIDER SIZE | 5'5"+ (165cm+) | ||||||||||
| STEM | 55mm | ||||||||||
| HANDLEBAR WIDTH | 29" | ||||||||||
| CRANK | 175mm | ||||||||||
| WHEEL SIZE | 29" | ||||||||||
| SEAT POST DIAMETER | 27.2 |
