SE Bikes

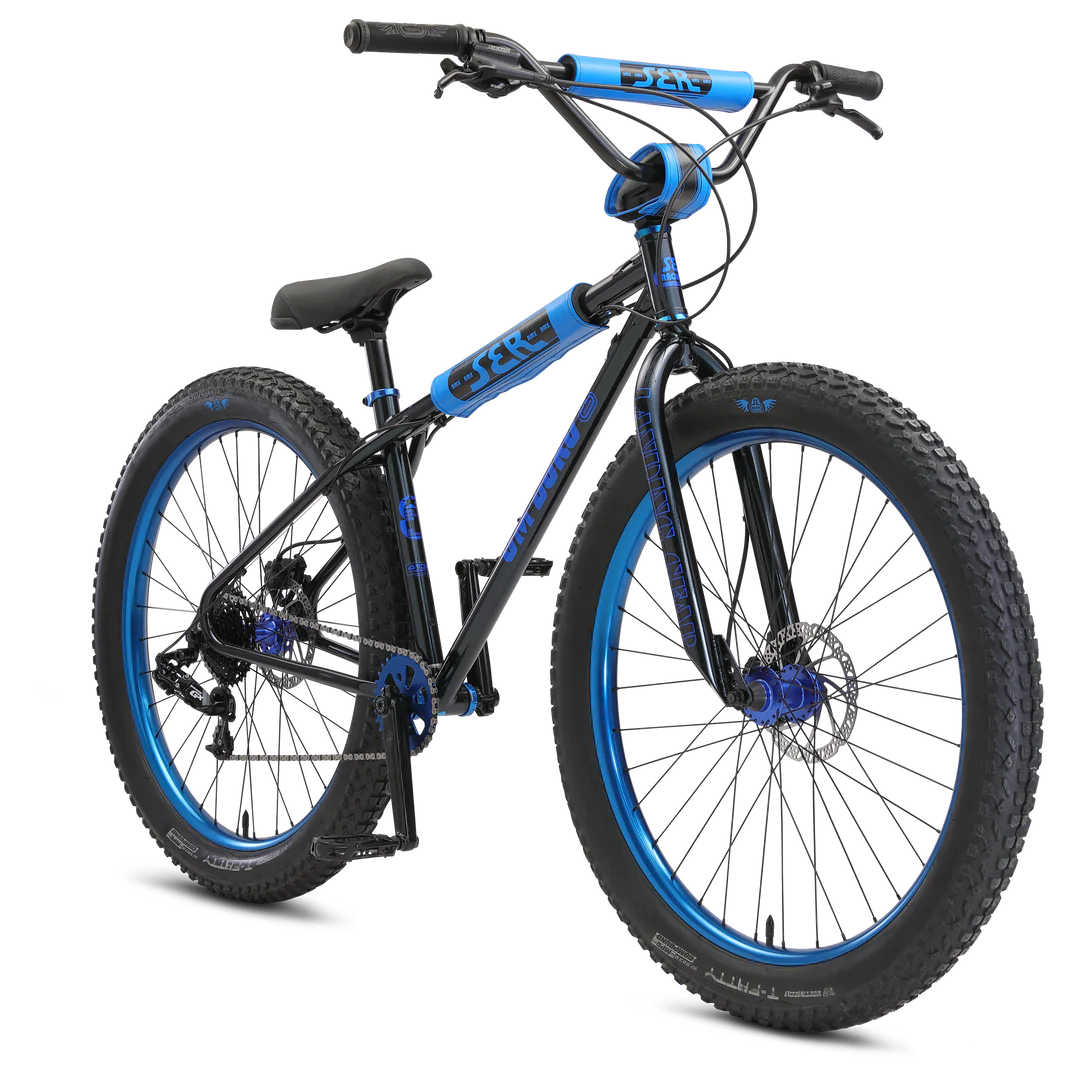

SE Bikes OM-Duro XL 27.5"
SE Bikes OM-Duro XL 27.5"
Regular price
$1,349.00 CAD
Regular price
$1,687.49 CAD
Sale price
$1,349.00 CAD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
About
To celebrate the life and times of SE’s founder, Scot Breithaupt, and SE’s motto of “BMX Innovations,” we created a bike like you’ve never seen before. The 27.5+ OM-Duro takes its design cues and aesthetics from the legendary OM Flyer and mixes in some radical mountain bike-style upgrades. This wildly unique bike comes in standard and XL sizes and features big 27.5 x 3.0” tires, a SRAM GX 1x10 drivetrain, Tektro Auriga disc brakes front and rear, a new external bottom bracket, and internal cable routing for a dropper seatpost. BMX meets mountain bike; there are no boundaries.
Key Features
- Cr-Mo OM-Duro frame with looptail rear end, Euro 73mm bottom bracket, 148mm dropout spacing, internal cable routing for dropper post, fixed dropouts and removable derailleur hanger
- Full Cr-Mo Landing Gear forks with 110mm-spaced dropouts
- 27.5” x 2.8” Vee Tire Co x SE Racing T-Fatty tires
- CNC alloy narrow/wide sprocket
- SRAM GX 1x10 derailleur, 10-speed 11-36T cassette
- SRAM GX 1x10, Trigger Shifter with exact actuation
- Tektro Auriga disc brakes with dual piston & automatic caliper positioning
- SE Flyer seat with bottle opener
- External bottom bracket
- SER padset
- 38 pounds / 38.1 pounds for XL
SPECIFICATIONS
| COLOR(S) | Black Sparkle |
| FRAME | Available in Standard & XL Sizes, 100% Cr-Mo Tubing, Looptail Rear End, 73mm Euro Bottom Bracket, 148mm Spaced Fixed Dropouts, Internal Cable Routing for Dropper Post, Disc brake Tabs, Vertical Dropouts, Removable Derailleur Hanger |
| FORK | Landing Gear, Full Cr-Mo, Disc Tabs, 450mm Axle to Crown, 38mm Offset, 110mm Spaced Dropouts |
| CRANKSET | SE V-Ridge 3-pc Cr-Mo, Cranks, 175mm, External Sealed Bearing Euro Bottom Bracket, 160mm Spindle Length, 19mm Spindle Diameter, 32T CNC Alloy Narrow/Wide Sprocket |
| PEDALS | X-Pedo Low-profile Platform w/ Removable Pins |
| REAR DERAILLEUR | SRAM GX 1x10, Short Cage |
| SHIFTERS | SRAM GX 1x10, Trigger Shifter, Exact Actuation, Alloy Lever |
| CASSETTE | Shimano Deore CS-HG50, 10-speed, 11-36T |
| CHAIN | KMC X10EL |
| WHEELSET | Alloy 36H Nutted Hubs, Sealed Rear, 110mm Front Hub & 148mm Rear Hub, w/ 42mm Double-Wall Disc Rims, 11-36T 10-speed Cassette, Stainless Spokes |
| TIRES | Vee Tire Co x SE Racing T-Fatty, 27.5" x 2.8" Front & Rear |
| BRAKESET | Tektro Auriga, Hydraulic Disc, Easy to Adjust Open System, Dual Piston, Automatic Caliper Positioning, 160mm Rotors |
| HEADSET | Tange 1-1/8" Threadless |
| HANDLEBAR | Big Honkin' Cr-Mo Cruiser Bar, 31" x 6", 10° Backsweep, 1° Upsweep |
| STEM | Retro Alloy Top-Load w/ Engraved SE Logo & Lightweight Cutouts, 55mm Reach |
| GRIPS | SE Racing Flangeless Mushroom Wing Grips w/ SE Rubber End Plugs |
| SEAT | SE Flyer Seat w/ Custom SE Bottle Opener Brace |
| SEATPOST | Micro-Adjust Alloy, 30.9mm |
| SEAT CLAMP | Alloy, 34.9mm Inner Diameter |
| ACCESSORIES | Vintage Vinyl SER Padset, Alloy Valve Caps, Water Bottle Mounts |
| WEIGHT | 38 lbs / 17.23 kgs |
*Specifications subject to change without notice
GEOMETRY
| A | TOP TUBE, ACTUAL | 22.3" | |||||||||
| TOP TUBE, EFFECTIVE | 23.2" | ||||||||||
| B | SEAT TUBE, CENTER TO TOP | 16.1" | |||||||||
| C | SEAT TUBE ANGLE | 73° | |||||||||
| D | HEAD TUBE ANGLE | 71° | |||||||||
| E | CHAINSTAY LENGTH | 17.5" | |||||||||
| F | WHEELBASE | 42.3" | |||||||||
| G | BOTTOM BRACKET HEIGHT | 12.4" | |||||||||
| H | STANDOVER | 30.5" | |||||||||
| SUGGESTED RIDER SIZE | 5'3"+ (160cm+) | ||||||||||
| STEM | 55mm | ||||||||||
| HANDLEBAR WIDTH | 31" | ||||||||||
| CRANK | 175mm | ||||||||||
| WHEEL SIZE | 27.5" | ||||||||||
| SEAT POST DIAMETER | 30.9mm |
OM Duro XL
| A | TOP TUBE, ACTUAL | 23.2" | |||||||||
| TOP TUBE, EFFECTIVE | 24.2" | ||||||||||
| B | SEAT TUBE, CENTER TO TOP | 17.5" | |||||||||
| C | SEAT TUBE ANGLE | 73° | |||||||||
| D | HEAD TUBE ANGLE | 71° | |||||||||
| E | CHAINSTAY LENGTH | 17.5" | |||||||||
| F | WHEELBASE | 43.3" | |||||||||
| G | BOTTOM BRACKET HEIGHT | 12.4" | |||||||||
| H | STANDOVER | 31.7" | |||||||||
| SUGGESTED RIDER SIZE | Suggested Rider Size | ||||||||||
| STEM | 55mm | ||||||||||
| HANDLEBAR WIDTH | 31" | ||||||||||
| CRANK | 175mm | ||||||||||
| WHEEL SIZE | 27.5" | ||||||||||
| SEAT POST DIAMETER | 30.9mm |
