About

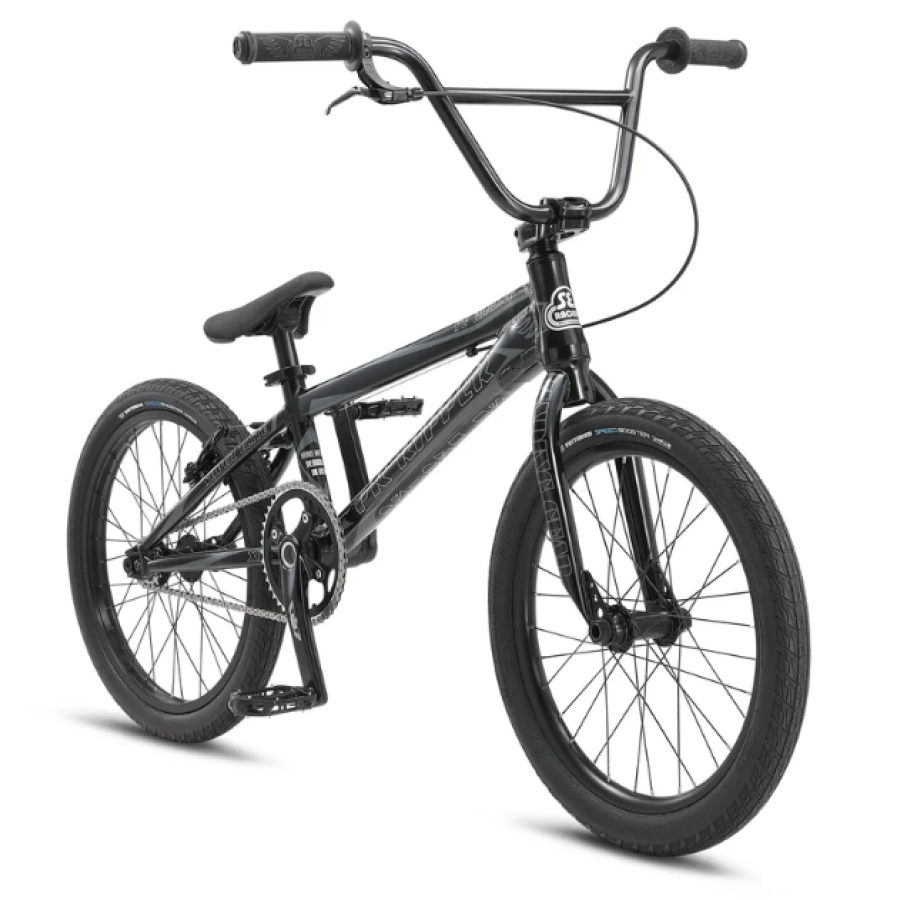

The PK Ripper has never been stiffer, stronger or faster. The PK Ripper Super Elite XL is the definition of "BMX innovations." The ultra-stiff 6066 aluminum frame comes equipped with features such as a tapered head tube, PF30 bottom bracket and 20mm dropouts front and rear. There is no doubt that this bike will put you on top of the podium.
Key Features
- Lightweight 6066 aluminum frame built with floval top tube, bi-oval down tube, tapered rear stays, 20mm rear dropouts, 1-1/8” – 1.5” tapered head tube and PF30 bottom bracket and built-in chain tensioners
- Lightweight Cr-Mo Landing Gear forks featuring tapered legs, tapered steerer tube and closed-end 20mm dropouts
- Promax Impact 6061-T6 Alloy CNC stem with hidden top cap for a clean look
- Lightweight 2-piece alloy crankset equipped with super-stiff oversized 30mm hollow spindle and PF30 bottom bracket
- SE Pivotal seat and seatpost
- Alienation Deviant and Black Sheep rims built with sealed cassette hubs equipped with 20mm hollow through-axle on the front and 15mm hollow through-axle on the rear
- Vee Tire Co Speed Booster tires provide ultra-quick cornering and low rolling resistance
- Comes equipped with 3/8”, 15mm and 20mm rear chain tensioner adapter plates
SPECIFICATIONS
| SUGGESTED RIDER SIZE | 5'5"+ (165cm+) |
| COLOR(S) | Platinum Silver |
| FRAME | Super Elite Design, Lightweight 6066 Aluminum Floval Tubing w/ Bi-Oval Down Tube, 1-1/8"-1.5" Tapered Integrated Head Tube, PF30 Bottom Bracket, 68mm Wide BB, Tapered Rear Stays, 3D 20mm Dropouts, Built-in Chain Tensioners |
| FORK | Super Elite Landing Gear, Full Cr-Mo, Tapered Steerer Tube, Tapered Legs, 20mm Closed Dropouts |
| CRANKSET | SE Racing 180mm Forged Alloy 2-pc Crankset, Sealed PF30 Bottom Bracket, 30mm Hollow Alloy Spindle, Alloy 44T Chainring, BCD 104mm |
| PEDALS | X-Pedo Low-profile Platform w/ Removable Pins |
| CHAIN | KMC Z1 |
| WHEELSET | Sealed Bearing Alloy Hubs, 20mm Hollow Front Through Axle, 15mm Hollow Rear Through Axle, Alienation Deviant 32H Front & Alienation Black Sheep 36H Rear, Double-Wall Rims, 16T Cassette, Stainless Spokes |
| TIRES | Vee Tire Co Speed Booster 20" x 1.95" Front, 20" x 1.75" Rear |
| BRAKESET | Promax P-1 6061 T-6 Alloy V-Brake, Blue Pads, Slick Cable |
| BRAKE LEVERS | Promax SE-342, 2-Finger Alloy |
| HEADSET | Neco, Sealed 1-1/8"-1.5" Tapered, Integrated Headset |
| HANDLEBAR | Cr-Mo PK Bar, 28.5" x 8.25", 10° Backsweep, 1° Upsweep |
| STEM | Promax Impact, 6061-T6 Aluminum, CNC Machined Hollowed Out Center, Lightweight External Cutouts, Hidden Top Cap, 53mm Reach |
| GRIPS | SE Racing Mushroom Wing Grips w/ SE Rubber End Plugs |
| SEAT | SE Racing Pivotal Race Seat |
| SEATPOST | Pivotal Alloy, 27.2mm, Promax Quick Release Seat Clamp |
| SEAT CLAMP | Promax Quick Release, 31.8mm Inner Diameter |
| ACCESSORIES | 20mm, 15mm & 3/8" Chain Tensioner Adapters, Promax Quick Release Seat Clamp |
| WEIGHT | 21.6 lbs / 9.8 kgs |
*Specifications subject to change without notice
GEOMETRY
| A | TOP TUBE, ACTUAL | 21" | |||||||||
| B | SEAT TUBE, CENTER TO TOP | 9.5" | |||||||||
| C | SEAT TUBE ANGLE | 71° | |||||||||
| D | HEAD TUBE ANGLE | 74° | |||||||||
| E | CHAINSTAY LENGTH | 14.3" | |||||||||
| F | WHEELBASE | 37.5" | |||||||||
| G | BOTTOM BRACKET HEIGHT | 11.5" | |||||||||
| H | STANDOVER | 22.2" | |||||||||
| SUGGESTED RIDER SIZE | 5'5"+ (165cm+) | ||||||||||
| STEM | 53mm | ||||||||||
| HANDLEBAR WIDTH | 28.5" | ||||||||||
| CRANK | 180mm | ||||||||||
| WHEEL SIZE | 20" | ||||||||||
| SEAT POST DIAMETER | 27.2mm |
