VOLUME VOYAGER V2 (JARREN BARBOZA) FRAME (FREE VOYAGER BARS W/ PURCHASE)
VOLUME VOYAGER V2 (JARREN BARBOZA) FRAME (FREE VOYAGER BARS W/ PURCHASE)
VOLUME VOYAGER V2 (JARREN BARBOZA) FRAME (FREE VOYAGER BARS W/ PURCHASE)

VOLUME VOYAGER V2 (JARREN BARBOZA) FRAME (FREE VOYAGER BARS W/ PURCHASE)

Regular price
$550.00
Regular price
Sale price
$550.00
Unit price
per
Availability
Sold out
Shipping calculated at checkout.

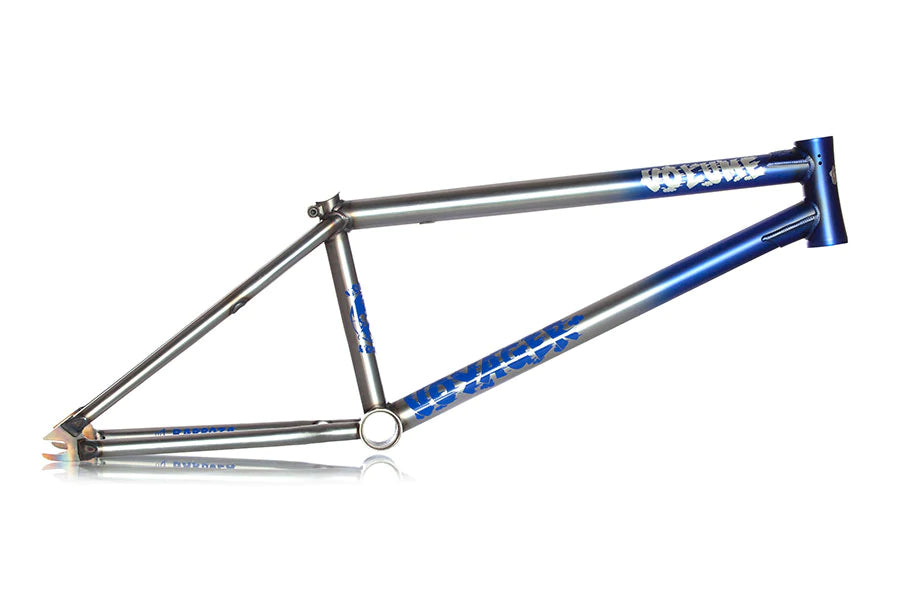

The New Voyager V2 frame features specs that our team riders have been asking for; steeper 75.25º head tube, shorter 12.5” slammed chainstay (12.75” center to center), a higher 9.25” seat tube height, and a 20.5” size for shorter riders. This frame now features double butted 4130 heat treated chromoly tubing, hour glass head tube, and small/ clean 6mm thick laser cut and welded dropouts with all new built in chain tensioner. Added top and bottom gussets for strength, removable brake mounts, and S chainstays for bigger tire clearance.

  • Voyager V2 Frame
  • Top Tube: 20.5″, 20.75″ & 21″
  • Chainstay: 12.5″ (Slammed)
  • BB height: 11.7″
  • Seat Tube height: 9.25″
  • Head Tube Angle: 75.25°
  • Seat Tube Angle: 71°
  • Seat Post: 25.4
  • Headtube: Integrated (45°X45° Campy Spec)
  • Brake Mounts: Removable Seatstay Mounts
  • Dropouts: Heat Treated, 6mm thick W/Built In Chain Tensioners. Clears hub guards and pegs of all sizes.
  • Color: Flat Trans Blue to Raw Fade (Jarren Barboza).
  • Weight: 5 lbs 2 oz (21″)
