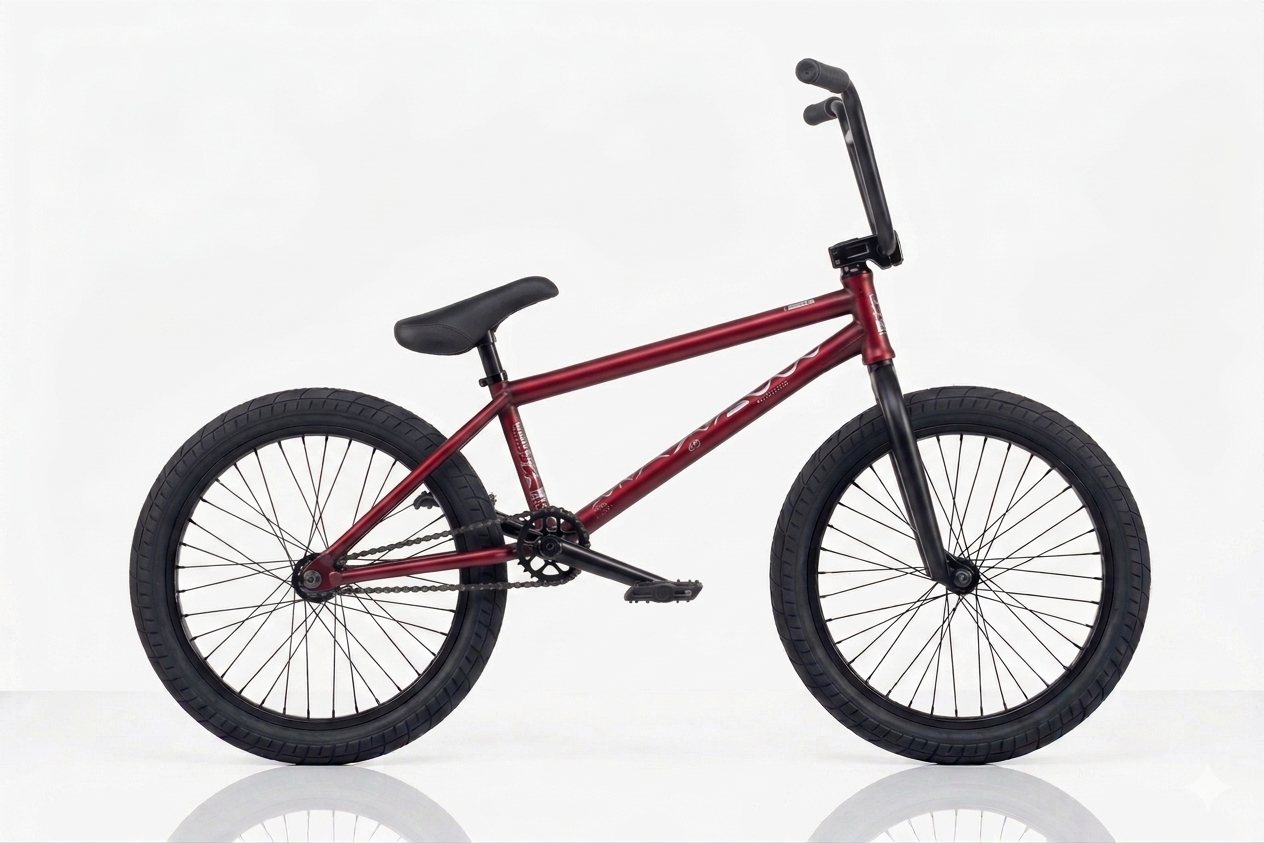

What can actually be said to sum up Jordan Godwin? One of the most progressive street riders in the game, to say Jordan has earned a signature frame would be the understatement of the century. The Doomsayer frame was a natural progression of the Battleship frame Jordan had been riding for 3 years combined with Jordan's specific needs which have evolved over that time. With super progressive geometry, a beefed-up tube set and a unique hydroformed seat tube junction, the Doomsayer is one of the most advanced and robust street frames we’ve ever made. Featuring a “snag free’ invest casted dropout for minimal drag on grinds. Includes updated artwork for this year. Fully backed by our Lifetime Guarantee.
FORK: WTP BATTLESHIP FORK (AFTERMARKET)
TUBING:
butted, Japanese seamless 4130 crmo tubing
BOTTOM BRACKET:
74mm mid size, cnc machined and heat-treated
HEAD TUBE:
127mm cnc machined and heat-treated, integ. h/set
DROPOUTS:
7.5mm investment cast with integrated chain tensioners, heat-treated 4130 crmo
SPECIAL FEATURES:
• revised dropout shape for no overhang with pegs for smoother grinds • modified headtube shape • 127mm tall head tube for less spacers with an uncut fork • super responsive, progressive street frame, 76.25° head tube • taller 11.9" bottom bracket for agility and sprocket protection • wider rear triangle allows clearance for a 2.4" tire • hydroformed down tube and seat tube junction for superior strength • larger 1.8mm welding and internal gusset at head tube • oversized 20.5mm seat stays for increased stiffness and durability
SALT "AM 20" fork, 1020 hi-ten , 4130 crmo steerer, 26mm offset
BARS:
SALT "NOVA" bar, 1020 hi-ten
Grips:
SALT "EX" grips, 154mm, flangless
STEM:
SALT "PRO" frontload stem, 50mm reach
HEADSET:
SALT "PRO" int. headset, sealed bearing
CRANKS
SALT "ROOKIE" tubular 3pc crank, crmo, 165mm, 8 spline
BB:
SALT "MID" bb, 19mm, press fit, sealed bearing
PEDALS:
ÉCLAT "SLASH" pedals, nylon/fiberglass
CHAIN:
SALT "AM" chain, Z1 type
SPROCKET:
SALT "GATEWAY" sprocket, steel, 25t
DRIVER:
1pc cassette driver, 9t, loose ball bearing
FRONT HUB:
SALT "NOVA" hub, alloy, loose ball, 3/8"s axle, 36h
REAR HUB:
SALT "NOVA" cassette hub, semi sealed, 9t, 14mm axle, 36h
FRONT RIM:
SALT "BEAM" rim, single wall, 36h
REAR RIM:
SALT "BEAM" rim, single wall, 36h
SEAT:
WETHEPEOPLE "NOVA" combo seat, mid padded
SEAT CLAMP:
ÉCLAT "PURE" seat clamp, 6061-T6 forged alloy
TIRES:
SALT "TRACER" tires, 2.35", front & rear
B - CHAIN STAY LENGTH:
12.9" – 13.25" - optimized for 13" w/ 28-9 or 13.15" w/ 28-9
C - HEAD TUBE ANGLE:
76.25°
